SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

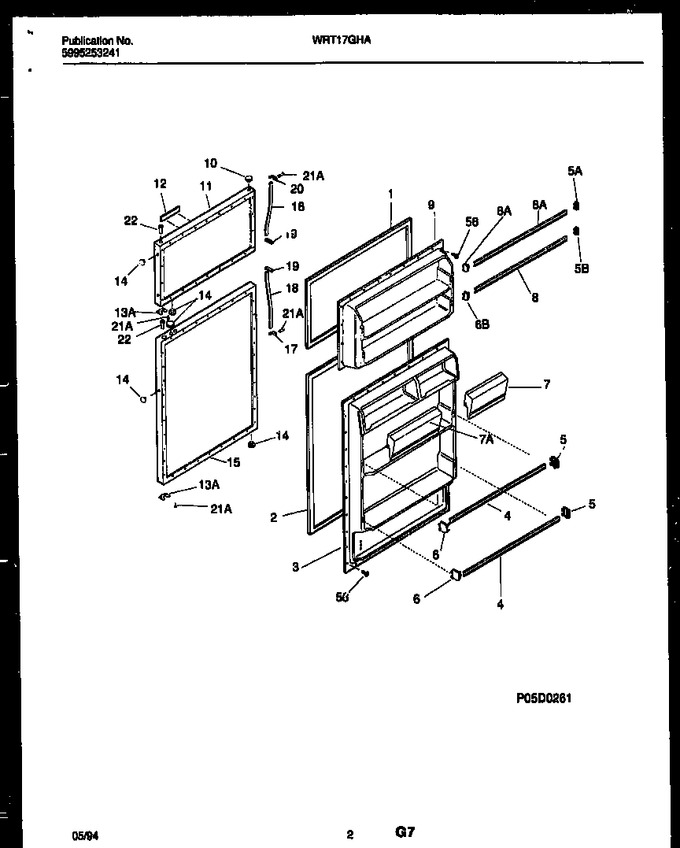

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608911		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730603		Gasket-refr Door, White, Magnetic   (Replaces: 215732412)				$ 62.07
3	215645301		Panel-inner Door, Refr		Appelez-nous	-
4	215366045		Rack-door		Appelez-nous	-
5	3206150		Support-door Rack, Extends 1/81``, Rh				$ 12.58
6	3206151		Support-door Rack, Extends 1.81``, Lh		Appelez-nous	-
7	5303300073		Door, Dairy, 9.29`` Wide		Appelez-nous	-
8	215366044		Rack-door		Appelez-nous	-
9	5303276517		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917156		Panel-frzr Door, White		Appelez-nous	-
12	215490701		Nameplate Assy, White		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917154		Panel-refr Door, White		Appelez-nous	-
17	215364800		Handle End				$ 73.92
18	215954201		Handle-door		Appelez-nous	-
19	215365000		Handle End, (2)		Appelez-nous	-
20	215364900		Handle End				$ 108.52
22	5308012007		Bearing-hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*96093	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	5308000255		Door Stop				$ 42.20
18B	215954305		Insert-handle Grip, White (non-illustrated)		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
5A	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
5B	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
6A	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
6B	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
7A	5303300074		Door-dairy, 11.94`` Wide		Appelez-nous	-
8A	5303300071		Rack-door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
