02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

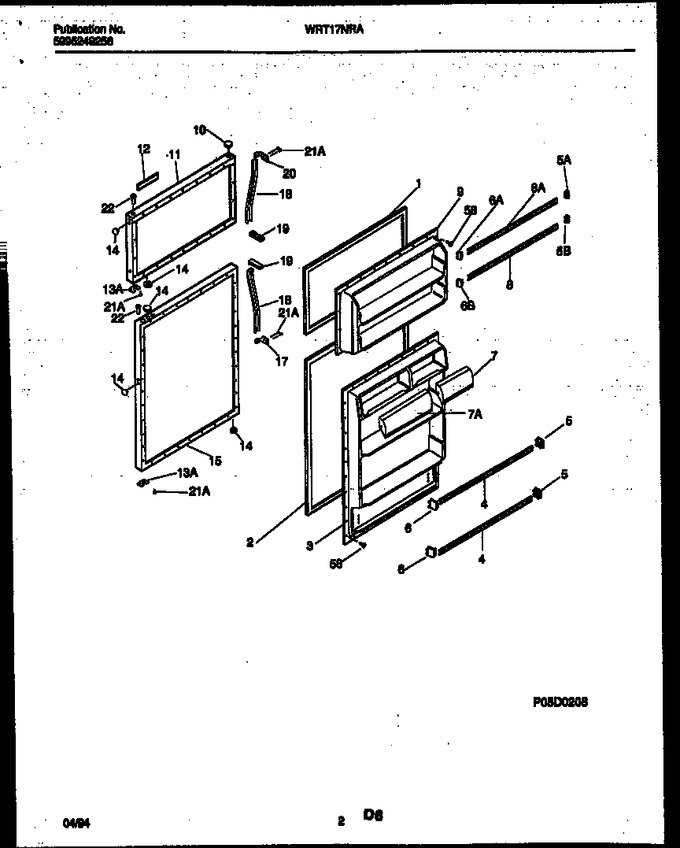

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608901		Gasket-frzr Door, Magnetic, Almond		Appelez-nous	-
2	215732402		Gasket-refr Door, Magnetic, Almond		Appelez-nous	-
3	215645301		Panel-inner Door, Refr		Appelez-nous	-
4	215366045		Rack-door, (2)		Appelez-nous	-
5	3206150		Support, Door Rack, Rh				$ 12.58
6	3206151		Support-door Rack, Lh		Appelez-nous	-
7	5303300073		Door-dairy		Appelez-nous	-
8	215366044		Rack-door		Appelez-nous	-
9	5303276517		Panel-inner Door, Frzr		Appelez-nous	-
10	3206119		Cover-evap Coil		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917157		Panel-frzr Door, Almond		Appelez-nous	-
12	215490711		Nameplate Assy, Almond		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917155		Panel-refr Door, Almond		Appelez-nous	-
17	215364800		Handle End				$ 73.92
18	215954201		Handle-door		Appelez-nous	-
19	215365000		Handle End, (2)		Appelez-nous	-
20	215364900		Handle End				$ 108.52
22	5308012007		Bearing-hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*94143	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	5315340760		Tape, Adhesive, 60`` Lg, Foam, Trim / Nameplate, Double Faced (non-illustrated)		Appelez-nous	-
13A	5308000255		Door Stop				$ 42.20
18A	215954305		Insert-handle Grip, White (non-illustrated)		Appelez-nous	-
18A	215954304		Insert-handle Grip, Almond (non-illustrated)		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
5A	3206165		Support-door Rack, Rh			Immediately	$ 8.19
5B	3206161		Support-door Rack, Rh		Appelez-nous	-
6A	3206166		Support-door Rack, Lh			Immediately	$ 9.93
6B	3206162		Support-door Rack, Lh		Appelez-nous	-
7A	5303300074		Door-dairy		Appelez-nous	-
7A	5303001380		Screw		Appelez-nous	-
8A	5303300071		Rack-door, Frzr		Appelez-nous	-
