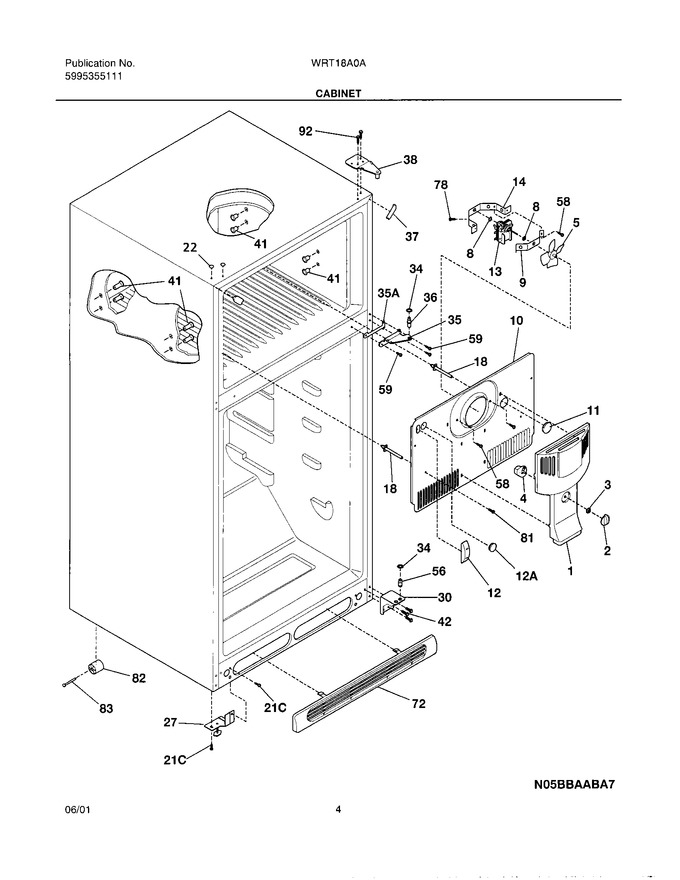

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241652301 | Cover-fan (Replaces: 240355401) |
|
$ 112.48 | |||||
| 2 | 240367001 | Knob-damper Control |
|
Immediately | $ 57.64 | ||||
| 3 | 5303001028 | Nut,push-on |
|
- | |||||
| 4 | 240367401 | Damper-fan Cover |
|
$ 41.32 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303292396 | Bracket-motor Mtg,front |
|
$ 72.30 | |||||
| 10 | 242239305 | Cover-evap Coil (Replaces: 240462005) |
|
$ 120.28 | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 12 | 240366801 | Plug-ice Maker Harness,rectangular |
|
$ 48.49 | |||||
| 14 | 240438003 | Bracket-motor Mtg,rear (Replaces: 5303292397) |
|
$ 17.44 | |||||
| 18 | 240345801 | Support-evap Cover,(2) |
|
$ 44.71 | |||||
| 22 | 215774901 | Plug-button,white ,upr Hinge Holes |
|
Immediately | $ 18.20 | ||||
| 27 | 240431702 | Screw,leveling Leg ,ls ,w/tapping Plate |
|
- | |||||
| 27 | 5303212922 | Screw-leveling,(2) |
|
$ 10.71 | |||||
| 30 | 240314011 | Bracket-lower Hinge,white (Replaces: 240314002) |
|
Immediately | $ 77.26 | ||||
| 34 | 240311303 | Washer,hinge ,nylon ,(2) (Replaces: 240311301) |
|
Immediately | $ 10.62 | ||||
| 35 | 240313802 | Bracket-ctr Hinge,white |
|
Immediately | $ 70.16 | ||||
| 36 | 241708002 | Pin-center Hinge (Replaces: 240313901) |
|
$ 21.27 | |||||
| 37 | 242161201 | Trim-cabinet Corner,white ,(2) (Replaces: 240337601) |
|
Immediately | $ 2.93 | ||||
| 38 | 240313703 | Bracket-upper Hinge (Replaces: 240313701) |
|
Immediately | $ 32.27 | ||||
| 41 | 5304509705 | Grommet,shelf Mtg ,0.69`` ,rh (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 42 | 240578902 | Screw-hinge Mtg,hex Head ,1/4-20 X 0.75 (Replaces: 240423601) |
|
Immediately | $ 14.18 | ||||
| 56 | 240516502 | Pin-lower Hinge (Replaces: 240314101) |
|
$ 72.80 | |||||
| 58 | 5303274237 | Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2 |
|
- | |||||
| 59 | 240442708 | Screw-10-32 X 3/4,white (Replaces: 240442702) |
|
$ 8.34 | |||||
| 72 | 241839405 | Grille/kickplate,white (Replaces: 240368201) |
|
$ 60.96 | |||||
| 78 | 241953902 | Screw-8-18 X 3/8,hex Washer Head ,8-18 X 0.375 (Replaces: 240433201) |
|
Immediately | $ 17.11 | ||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin (Replaces: 5303316859) |
|
Immediately | $ 35.34 | ||||
| 92 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 12A | 240374401 | Plug-wtr Inlet Tube,round ,1`` |
|
$ 12.15 | |||||
| 21C | 218252201 | Screw,8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 35A | 240336802 | Spacer-hinge,center (Replaces: 240336801) |
|
Immediately | $ 18.43 | ||||
| F13 | 5303918549 | Motor-evap Fan (Replaces: 240369701) |
|
Immediately | $ 66.06 | ||||
| F5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 49.03 | ||||
| NI | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 | ||||
| NI | 218843800 | Screw,hex Wshr Hd ,8-15a X 0.500 |
|
- | |||||
| NI | 240385401 | Wiring Harness,freezer Section |
|
$ 73.97 | |||||
| NI | 240431701 | Screw,leveling Leg ,rs ,w/tapping Plate |
|
- | |||||
| NI | 240371302 | Seal-coil Cover |
|
- | |||||
| NI | 5304500407 | Grommet,shelf Mtg ,1.25`` ,lh (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| NI | 5308016571 | Plug-button,cab Liner Holes |
|
$ 4.79 | |||||
| NI | 218931001 | Clamp-motor Wiring,nylon ,w/adhesive Tape |
|
- |
