SELECT A DIAGRAM

01 - Cover

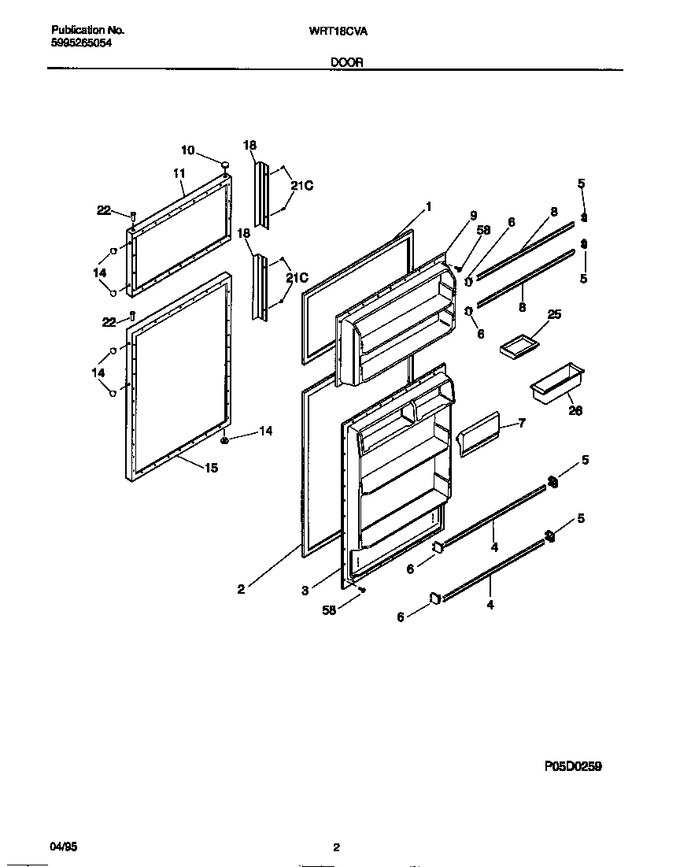

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303017189		Gasket-frzr Door, Brown, Magnetic		Appelez-nous	-
2	5308017487		Gasket-refr Door, Brown, Magnetic		Appelez-nous	-
3	5303206569		Panel-inner Door, Refr		Appelez-nous	-
4	5303281387		Rack-door, 25.25`` X 1.58``		Appelez-nous	-
5	5303007295		Support-door Rack, Rh				$ 32.55
6	5303007297		Support-door Rack, Lh				$ 64.58
7	5303300066		Door-dairy		Appelez-nous	-
8	5303288345		Rack-door, 25.06`` X 1.58``		Appelez-nous	-
9	5303206550		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	3916395		Panel-frzr Door, Almond		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	3916382		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	215164904		Handle - Door, 8`` Long, Black Vinyl		Appelez-nous	-
21	218252201		Screw, No. 8 Truss Head, 10-32 X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
22	3206153		Bearing-hinge		Appelez-nous	-
25	5308000716		Dish-butter				$ 20.48
26	3204522		Container-egg				$ 98.33
58	5308002748		Screw		Appelez-nous	-
*17480	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
