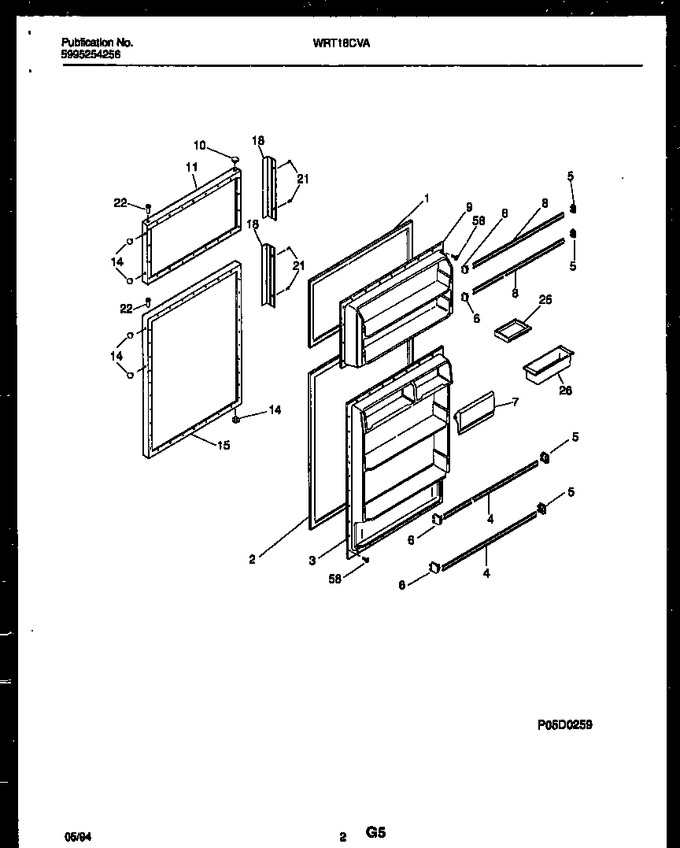

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017189 | Gasket-frzr Door, Brown, Magnetic |
|
- | |||||
| 2 | 5308017487 | Gasket-refr Door, Brown, Magnetic |
|
- | |||||
| 3 | 5303206569 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303281387 | Rack-door, 25.25`` X 1.58`` |
|
- | |||||
| 5 | 5303007295 | Support-door Rack, Rh |
|
$ 32.55 | |||||
| 6 | 5303007297 | Support-door Rack, Lh |
|
$ 64.58 | |||||
| 7 | 5303300066 | Door-dairy |
|
- | |||||
| 8 | 5303288345 | Rack-door, 25.06`` X 1.58`` |
|
- | |||||
| 9 | 5303206550 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 3916392 | Panel-frzr Door, White |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 3916379 | Panel-refr Door, White, W/insul & Brace |
|
- | |||||
| 18 | 215164904 | Handle - Door, 8`` Long, Black Vinyl |
|
- | |||||
| 21 | 5308013645 | Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2 |
|
- | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 25 | 5308000716 | Dish-butter |
|
$ 20.48 | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *96879 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
