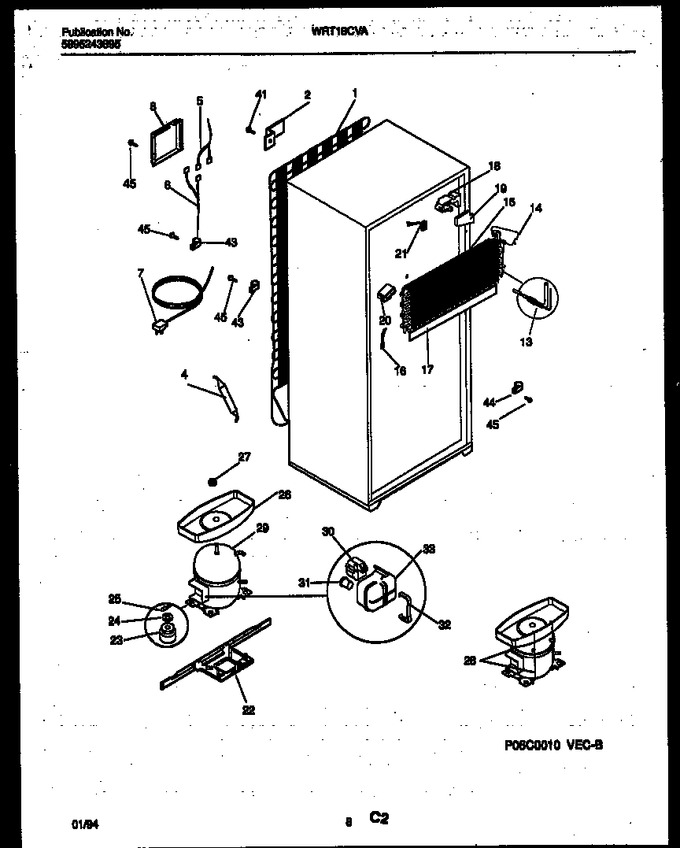

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308009770		Condenser		Appelez-nous	-
2	5308000296		Bracket-cond Mtg (4)				$ 30.20
4	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
5	5303210364		Harness-wiring, Control/divider		Appelez-nous	-
6	5303001635		Harness-wiring, Compressor		Appelez-nous	-
7	5308013389		Cord-electric Power		Appelez-nous	-
8	5303001197		Cover-wiring		Appelez-nous	-
13	215133500		Heat-exchanger, Suction Line		Appelez-nous	-
14	5303275246		Heater-defrost		Appelez-nous	-
15	3206452		Evaporator		Appelez-nous	-
16	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 59.82
17	5303207493		Insulator-evap, Plastic				$ 27.51
18	5308013648		Insulation Block, Rh		Appelez-nous	-
19	5303007287		Insulation Plug, Rh		Appelez-nous	-
20	5308017227		Insulation Block, Lh		Appelez-nous	-
21	5303917954		Thermostat-defrost   (Replaces: 5316269001)			Immediately	$ 30.47
22	3206126		Plate-compr Mtg, With Rail		Appelez-nous	-
23	215175000		Grommet-compr Mtg, (4)		Appelez-nous	-
24	5308003633		Washer-compr Mtg, (3)				$ 35.67
25	5308003596		Clip-compressor Mtg, (3)				$ 6.62
26	5300184715		Pan-defrost Drain, Orig/svce Compr		Appelez-nous	-
27	5303001348		Nut,lock `1/4-20 ,drain Pan Mtg				$ 2.73
28	5303916001		Pan Retainer Kit, Service				$ 78.75
29	5303916804		Compressor W/elec, Service		Appelez-nous	-
30	5303211376		Relay		Appelez-nous	-
31	5303270973		Overload		Appelez-nous	-
32	5303006412		Strap-cover		Appelez-nous	-
33	5303006411		Cover, Terminal		Appelez-nous	-
41	5308000039		Screw		Appelez-nous	-
43	5303001199		Clamp				$ 65.92
43	5303270914		Clamp, Service Cord, Aluminum, W/ Insulator		Appelez-nous	-
44	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
45	5300141713		Screw-clamp Mtg, Spcl Hx Wshr Hd, 8-32 X 5/8		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
*85361	5303916744		Hot Tube Repair Kit, Service		Appelez-nous	-
1A	5303017691		Spacer-tube (non-illustrated)				$ 64.91
22A	3051070		Screw, Spcl Hx Wshr Hd, 10-32 X 1/2 (non-illustrated)		Appelez-nous	-
26A	5308017610		Sound Tape-dfr Pan (non-illustrated)		Appelez-nous	-
2A	5308009617		Washer, Ext Tooth Lock, No. 10 (non-illustrated)		Appelez-nous	-
8A	5303206754		Washer, No. 10 Flat, 7/32 X 7/16 Od, Steel (non-illustrated		Appelez-nous	-
8B	5303270512		Nut, 8-32 Hex, (2) (non-illustrated)		Appelez-nous	-
8C	5303270915		Connector Plug, Rh (non-illustrated)		Appelez-nous	-
8D	5308013390		Bracket-grounding (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
