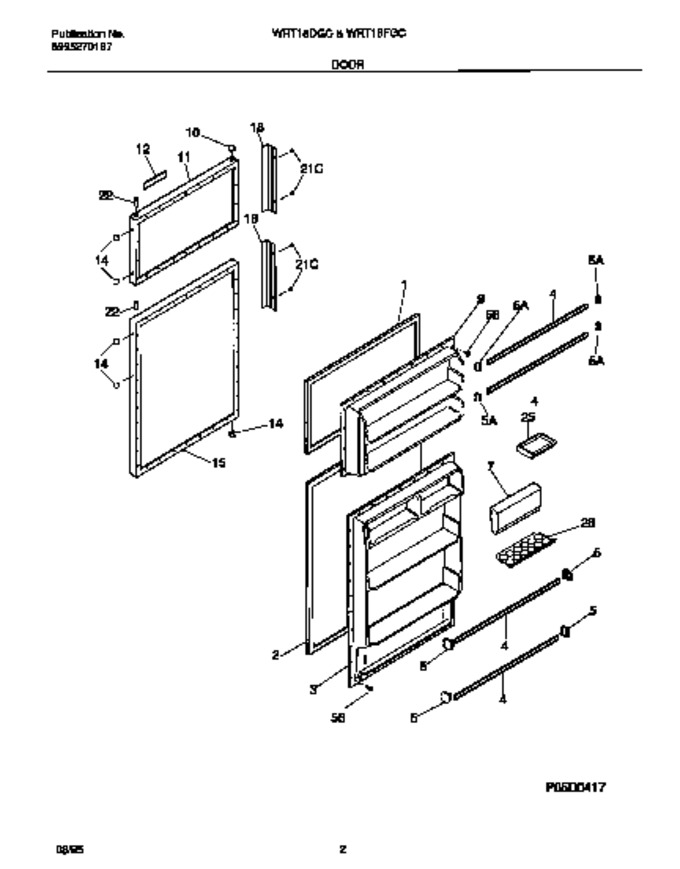

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608916 | Gasket-frzr Door, White, Magnetic |
|
$ 258.30 | |||||
| 2 | 215732415 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 218360001 | Panel-inner Door, Refr |
|
$ 453.98 | |||||
| 4 | 215366002 | Rack-door,23.81`` X 1.62`` (Replaces: 218027022) |
|
Immediately | $ 65.83 | ||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 7 | 218287801 | Door-dairy |
|
$ 41.48 | |||||
| 9 | 218360101 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917612 | Panel-frzr Door, White, W/insulation |
|
- | |||||
| 12 | 5303281098 | Nameplate Assy, Black/silver, W / Mtg Tape |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917614 | Panel-refr Door, White, W/insul & Brace |
|
- | |||||
| 16 | 5315340760 | Tape, Adhesive, 60`` Lg, Foam, Trim/nameplate, Double Fac |
|
- | |||||
| 18 | 215164904 | Handle - Door, 8`` Long, Black Vinyl |
|
- | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 25 | 5308000716 | Dish-butter |
|
$ 20.48 | |||||
| 26 | 215817806 | Tray-egg |
|
$ 13.46 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *50000 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 12A | 5315340712 | Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustrated) |
|
- | |||||
| 21C | 218252201 | Screw, No. 8 Truss Head, 10-32 X 1/2 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 5A | 215473602 | Support-door Rack, Rh/lh (Replaces: 215473601) |
|
Immediately | $ 11.58 | ||||
| 7A | 5303001380 | Screw |
|
- |
