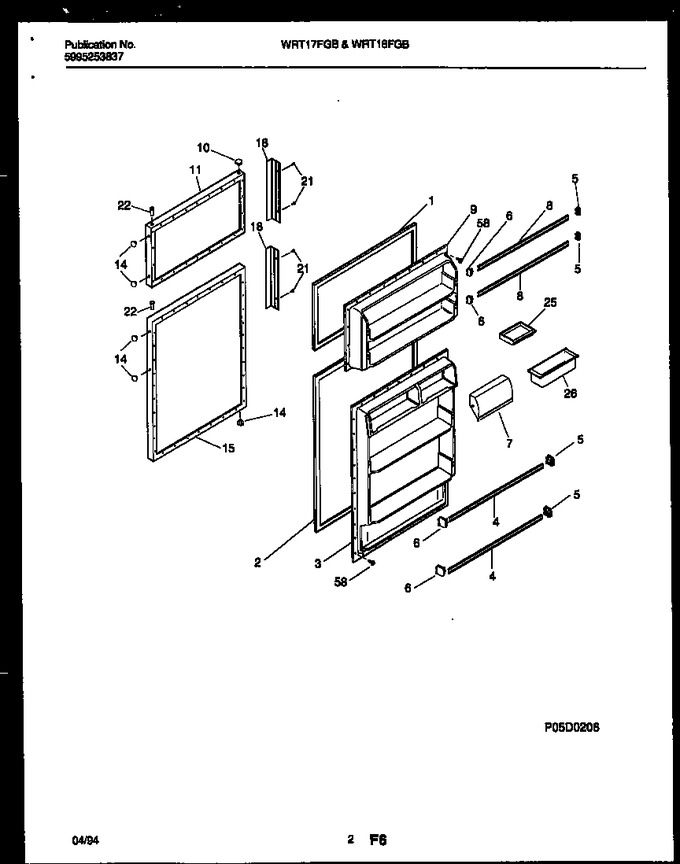

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
07 - Ice Maker And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608966 | Gasket, Frzr Door, Brown, Magnetic |
|
- | |||||
| 2 | 215732465 | Gasket, Refr Door, Brown, Magnetic |
|
- | |||||
| 3 | 5303207346 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303281481 | Rack, Door |
|
$ 165.80 | |||||
| 5 | 5303207230 | Support - Door Rack, Rh |
|
Immediately | $ 17.21 | ||||
| 6 | 5303207229 | Support - Door Rack, Lh |
|
$ 17.59 | |||||
| 7 | 5303290741 | Door - Dairy |
|
- | |||||
| 8 | 5303281482 | Rack, Door |
|
- | |||||
| 9 | 5303207343 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303917168 | Panel, Frzr Door, Almond |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303917170 | Panel, Refr Door, Almond |
|
- | |||||
| 18 | 215164904 | Handle - Door, 8`` Long, Black Vinyl |
|
- | |||||
| 21 | 5308013645 | Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2 |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 25 | 5308000716 | Dish-butter, White |
|
$ 20.48 | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *95183 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
