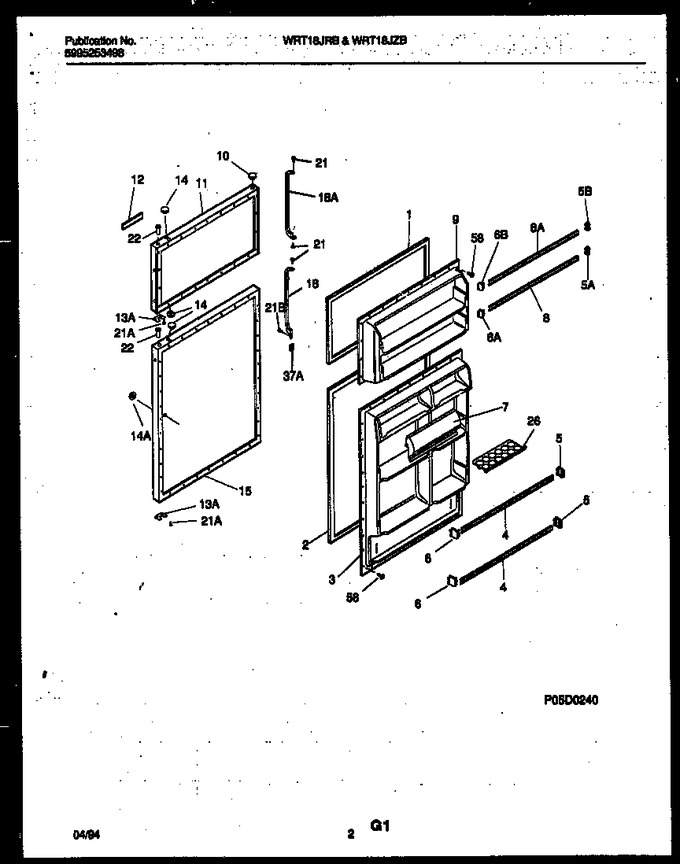

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608906 | Gasket-frzr Door, Almond, Magnetic |
|
- | |||||
| 2 | 5303207345 | Gasket-refr Door, Almond, Magnetic (Replaces: 5303288239) |
|
Immediately | $ 188.19 | ||||
| 3 | 5303300061 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215366097 | Rack-door, Wide |
|
- | |||||
| 5 | 3206150 | Support-door Rack, Extends 1/81``, Rh |
|
$ 12.58 | |||||
| 6 | 3206151 | Support-door Rack, Extends 1.81``, Lh |
|
- | |||||
| 7 | 5303304765 | Door Dairy |
|
- | |||||
| 8 | 218027007 | Rack-door, Wide |
|
- | |||||
| 9 | 5303295730 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303917314 | Panel-frzr Door, Almond, W/insulation |
|
- | |||||
| 12 | 215079000 | Plug-harness Hole, Round |
|
$ 8.61 | |||||
| 12 | 215490711 | Nameplate Assy, Almond |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303917360 | Panel-refr Door, Almond, W/insulation |
|
- | |||||
| 18 | 215915507 | Handle-door,almond |
|
- | |||||
| 21 | 5303272568 | Screw-handle Mtg, Cr Oval Head, 10-24(d) X 5/8, Almond, |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 26 | 215817806 | Tray-egg |
|
$ 13.46 | |||||
| 13A | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 14A | 215352211 | Plug-button,almond ,refr Door Front , |
|
- | |||||
| 18A | 215915505 | Handle-door,almond |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 21B | 215733200 | Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2 |
|
- | |||||
| 37A | 215480204 | Trim-handle, End Cap, Almond, Refr Door |
|
- | |||||
| 5A | 3206161 | Support-door Rack, Extends 1.06``, Rh |
|
- | |||||
| 5B | 3206165 | Support-door Rack, Extends 1.06``, Rh |
|
Immediately | $ 8.19 | ||||
| 6A | 3206162 | Support-door Rack, Extends 1.06``, Lh |
|
- | |||||
| 6B | 3206166 | Support-door Rack, Extends 1.06``, Lh |
|
Immediately | $ 9.93 | ||||
| 8A | 215806317 | Rack-door, Narrow |
|
- |
