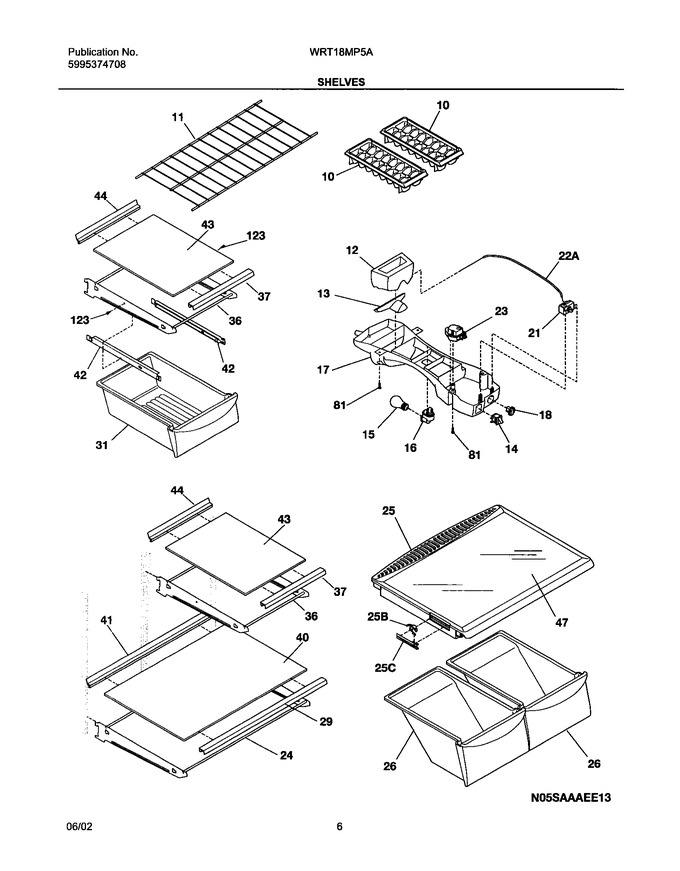

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 215667501 | Tray,ice Cube ,plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 240358002 | Shelf-freezer,full Width |
|
- | |||||
| 12 | 240545001 | Diffuser,air ,top |
|
$ 44.61 | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 41.81 | ||||
| 14 | 240505801 | Switch-light/lamp |
|
$ 66.63 | |||||
| 15 | 316538904 | Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature (Replaces: 240436702) |
|
Immediately | $ 20.48 | ||||
| 16 | 241559801 | Socket-light/lamp (Replaces: 241500701) |
|
$ 72.68 | |||||
| 17 | 240352701 | Control Box |
|
- | |||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 240373102 | Frame-full Shelf,cantilever |
|
- | |||||
| 25 | 240364793 | Cover-crisper Pan,with Beam ,humid Cont (Replaces: 240364713) |
|
Immediately | $ 108.94 | ||||
| 26 | 240337103 | Pan-crisper,clear ,(2) ,no Graphics |
|
Immediately | $ 148.35 | ||||
| 29 | 240357701 | Trim-shelf,24.48`` ,front |
|
$ 70.82 | |||||
| 31 | 240530811 | Pan-meat,w/o Graphics ,clear (Replaces: 240530803) |
|
Immediately | $ 135.77 | ||||
| 36 | 241616607 | Frame-half Shelf,cantilever (Replaces: 240373103) |
|
$ 146.81 | |||||
| 37 | 240357702 | Trim-shelf,11.95`` ,front |
|
$ 63.80 | |||||
| 40 | 240443910 | Glass-shelf,full Shelf |
|
- | |||||
| 41 | 240357801 | Trim-shelf,24.48`` ,rear |
|
$ 56.12 | |||||
| 42 | 240530601 | Track,meat Pan Hanger ,lh |
|
Immediately | $ 65.98 | ||||
| 42 | 240530701 | Track,meat Pan Hanger ,rh |
|
Immediately | $ 65.98 | ||||
| 43 | 240443913 | Glass-shelf,half Shelf |
|
- | |||||
| 44 | 240357802 | Trim-shelf,11.95`` ,rear |
|
$ 50.76 | |||||
| 47 | 240350672 | Insert-pan Cover,glass |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 123 | 215005101 | Screw,hanger/rlr Mtg ,8-10 X 0.438 (Replaces: 215005100) |
|
$ 14.89 | |||||
| 22A | 240468202 | Tube,sensor Sleeve ,31 Inch ,plastic ,white (Replaces: 240468201) |
|
$ 9.10 | |||||
| 25B | 5304492617 | Control-humidity (Replaces: 240361202) |
|
Immediately | $ 8.69 | ||||
| 25C | 5304492617 | Damper,humidity Cont. (Replaces: 240361301) |
|
Immediately | $ 8.69 | ||||
| F21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 72.31 | ||||
| F23 | 215846602 | Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min (Replaces: 215846606) |
|
Immediately | $ 28.20 | ||||
| NI | 240522114 | Label-energy Guide |
|
- | |||||
| NI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 80.09 | ||||
| NI | 5303299664 | Spacer-shelf |
|
$ 24.10 | |||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 |
