SELECT A DIAGRAM
01 - Top And Console, Lit/optional

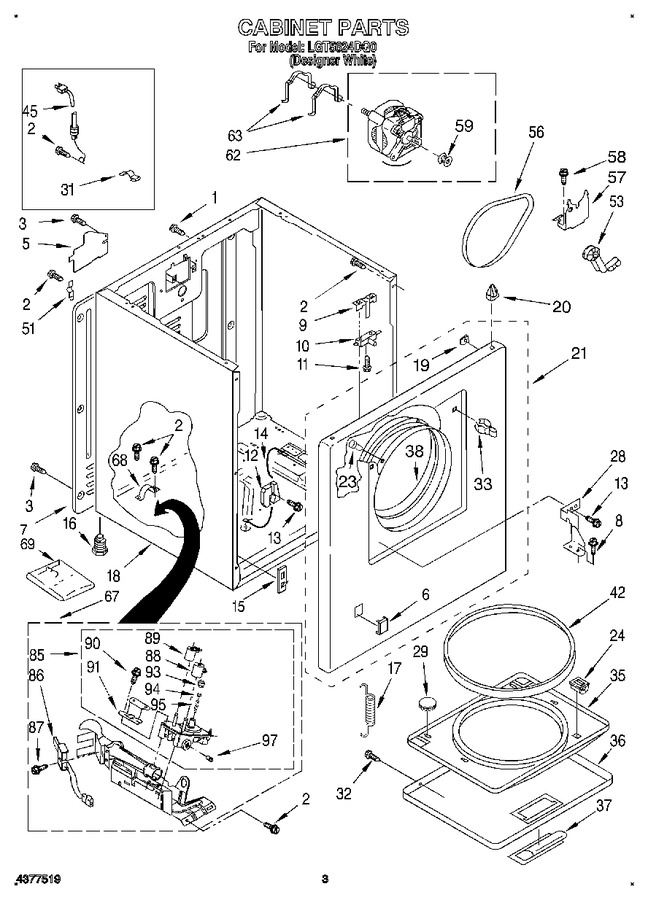

02 - Cabinet
03 - 3401771 Burner Assembly
04 - Bulkhead
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10850756 | Screw, 10-16 X 1/2 (Replaces: 697776) |
|
$ 6.98 | |||||
| 2 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 5 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 539.78 | ||||
| 6 | 3394975 | Plug, Front Panel (white) |
|
$ 5.70 | |||||
| 7 | 3396807 | Panel, Rear |
|
- | |||||
| 8 | WP488627 | Screw, 8-15 X 1/2 (Replaces: 688160) |
|
$ 6.81 | |||||
| 9 | WP691581 | Clip, Door Switch (Replaces: 691581) |
|
Immediately | $ 7.28 | ||||
| 10 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 27.45 | ||||
| 11 | WP98129 | Screw, 6-20 X 7/8 (2) (Replaces: 98129) |
|
$ 6.80 | |||||
| 12 | 337182 | Guide, Cable (l.h) |
|
$ 5.51 | |||||
| 12 | 337183 | Guide, Cable (r.h.) |
|
$ 5.51 | |||||
| 13 | WP90767 | Screw (Replaces: 339493) |
|
Immediately | $ 7.04 | ||||
| 14 | 230131 | Cable, Door (2) |
|
$ 8.41 | |||||
| 15 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 14.00 | ||||
| 16 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 | ||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 17 | WP337186 | Spring, Door (Replaces: 337186) |
|
$ 7.25 | |||||
| 18 | 3399580 | Cabinet (white (includes Illus. Nos. 5, 7, 15, 16, And 57.)) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 10.25 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 11.41 | ||||
| 21 | 3394890 | Front Panel Assembly (white) |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 18.59 | |||||
| 24 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 28 | WP238460 | Hinge, Door (l.h.) (Replaces: 238460) |
|
$ 6.78 | |||||
| 28 | 238456 | Hinge, Door (r.h.) |
|
$ 5.33 | |||||
| 29 | WP660975 | Plug (Replaces: 660975) |
|
$ 6.79 | |||||
| 31 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 9.98 | |||||
| 32 | WP694091 | Screw (Replaces: 694091) |
|
$ 6.47 | |||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 35 | 695953 | Door, Rear |
|
- | |||||
| 36 | 348737 | Door, Front (white) |
|
- | |||||
| 37 | WP348721 | Handle, Door (white) (Replaces: 690270) |
|
$ 70.10 | |||||
| 38 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 67.07 | ||||
| 42 | W11613302 | Seal, Door (Replaces: 3390734) |
|
$ 48.27 | |||||
| 45 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 108.53 | |||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.04 | |||||
| 53 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 660996) |
|
Immediately | $ 16.34 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 109.41 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 12.03 | ||||
| 59 | WP8066184 | Pulley, 60 Hz. (Replaces: 3401143) |
|
Immediately | $ 45.92 | ||||
| 62 | 279827 | Motor, 60 Hz. (Replaces: 3395652) |
|
Immediately | $ 172.76 | ||||
| 63 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.05 | |||||
| 63 | WP660658 | (alt.) (Replaces: 343481) |
|
$ 7.05 | |||||
| 63 | WP660658 | (alt.) (Replaces: 685441) |
|
$ 7.05 | |||||
| 67 | 3401771 | Burner Assembly, 60 Hz. (refer To Burner Assembly Parts Page For Further Breakdown) |
|
- | |||||
| 68 | 341029 | Clamp, Pipe |
|
- | |||||
| 69 | 49572A | Kit, Conversion (type 1, 2 & 3 To Type 4) (Replaces: 694572) |
|
Immediately | $ 32.57 | ||||
| 85 | 279923 | Valve, Gas 60 Hz. (complete) (Replaces: 3401775) |
|
Immediately | $ 257.43 | ||||
| 86 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 87 | WPW10366705 | Screw & Washer (Replaces: 3393909) |
|
$ 6.75 | |||||
| 88 | 279834 | Coil, 60 Hz. (split) (3 Terminal) (pilot Position) (Replaces: 694539) |
|
Immediately | $ 29.57 | ||||
| 89 | 279834 | Coil, 60 Hz. (2 Terminal) (main) (Replaces: 694540) |
|
Immediately | $ 29.57 | ||||
| 90 | 694421 | Screw, Bracket Mounting (8-32 X 1/2) |
|
- | |||||
| 91 | 694538 | Bracket, Coil |
|
$ 72.05 | |||||
| 93 | WP694424 | Leak Limiter (Replaces: 694424) |
|
$ 31.11 | |||||
| 94 | WP694423 | Screw, Regulator Adjustment (Replaces: 694423) |
|
$ 6.26 | |||||
| 95 | WP694422 | Spring, Regulator (Replaces: 694422) |
|
$ 21.84 | |||||
| 97 | W10295523 | Plug, Pipe (Replaces: 239822) |
|
- |
