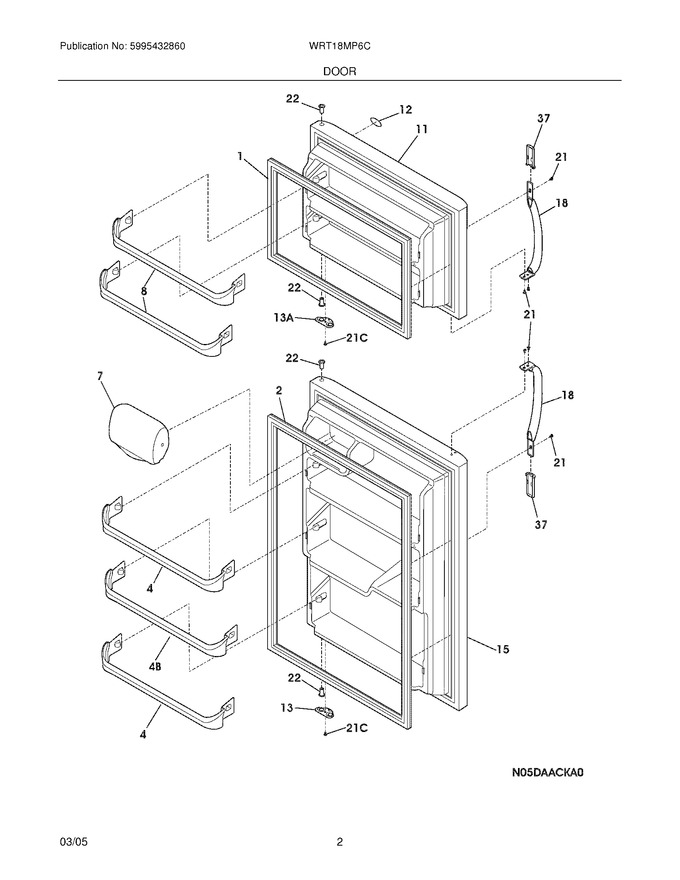

03 - Door
05 - Cabinet
07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240534901 | Rack-door |
|
Immediately | $ 47.03 | ||||
| 7 | 240337712 | Door-dairy,w/o Graphics ,clear (Replaces: 240337703) |
|
Immediately | $ 36.41 | ||||
| 8 | 240534801 | Rack-door |
|
Immediately | $ 49.62 | ||||
| 11 | 241623309 | Door,frzr ,stainless Steel ,rh |
|
$ 234.22 | |||||
| 12 | 240415702 | Nameplate |
|
$ 67.04 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 15.17 | |||||
| 15 | 241623412 | Door,refr ,stainless Steel ,rh |
|
$ 324.75 | |||||
| 18 | 218668003 | Handle-door, Black |
|
$ 69.46 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 (Replaces: 240383401) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 7.59 | ||||
| 37 | 215870636 | Trim-handle,2.47`` ,black ,w/satin Al Band |
|
$ 76.91 | |||||
| 13A | 240312415 | Door Stop,black ,frzr (Replaces: 240312406) |
|
$ 21.27 | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 4B | 240534701 | Rack-door,4b |
|
Immediately | $ 28.80 | ||||
| F1 | 241872509 | Gasket-frzr Door,black ,magnetic (Replaces: 240542109) |
|
Immediately | $ 164.15 | ||||
| F2 | 241872512 | Gasket-refr Door,black ,magnetic (Replaces: 240542112) |
|
Immediately | $ 165.39 | ||||
| NI | 218676004 | Band-decorative,satin Aluminum ,handle Trim |
|
$ 57.60 | |||||
| NI | 218490901 | Cleaner,stainless Steel |
|
$ 5.58 |
