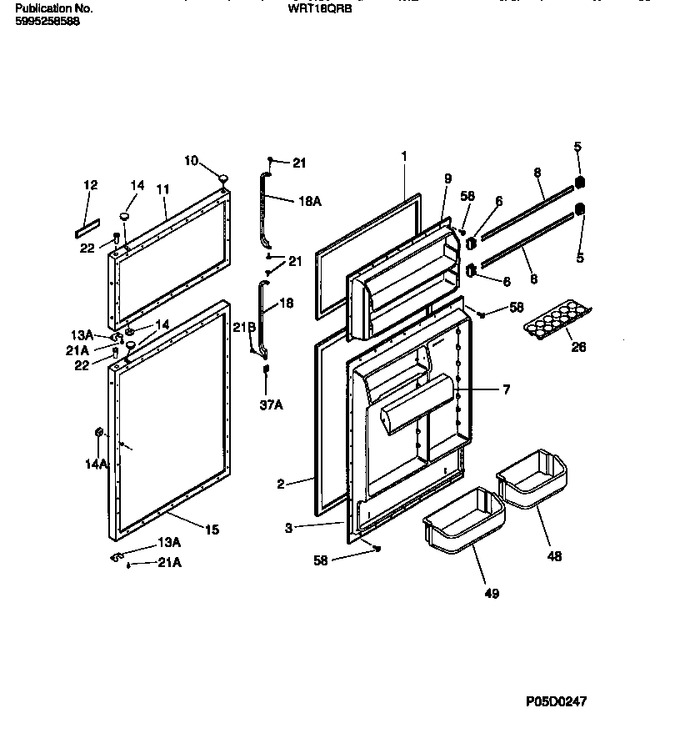

SELECT A DIAGRAM

01 - Top Mount Refrigerator


02 - Door Section


03 - Cabinet W/fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608906		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	5303207345		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288239)			Immediately	$ 188.19
3	215484101		Panel-inner Door, Refr		Appelez-nous	-
5	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
6	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
7	5303304560		Door-dairy		Appelez-nous	-
8	215366097		Rack-door, Wide		Appelez-nous	-
9	5303207343		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917314		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	215220310		Label-nameplate, Dk Putty/lt Brn (non-illustrated)		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917360		Panel-refr Door, Almond, W/insulation		Appelez-nous	-
18	215915507		Handle-door,almond		Appelez-nous	-
21	5303272568		Screw-handle Mtg, Oval Head, 10-24(d) X 5/8, Almond Cro		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
26	215817086		Tray-egg		Appelez-nous	-
48	215940009		Bin-door, 9.84`` Wide		Appelez-nous	-
49	215441502		Bin-door, 13.22`` Wide   (Replaces: 215441507)				$ 176.87
58	5308002748		Screw		Appelez-nous	-
*27160	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	215490711		Nameplate Assy, Almond		Appelez-nous	-
12B	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (non-illustrated)		Appelez-nous	-
12C	5315340760		Tape, Adhesive, 60`` Lg, Foam, Trim / Nameplate, Double Faced (non-illustrated)		Appelez-nous	-
13A	5308000255		Door Stop				$ 42.20
14A	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
18A	215915505		Handle-door,almond		Appelez-nous	-
21A	218251900		Screw,8 Oval Head, 10-32(ca) X 5/8, Cross Recessed				$ 10.55
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
37A	215480204		Trim-handle, End Cap, Almond, Refr Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
