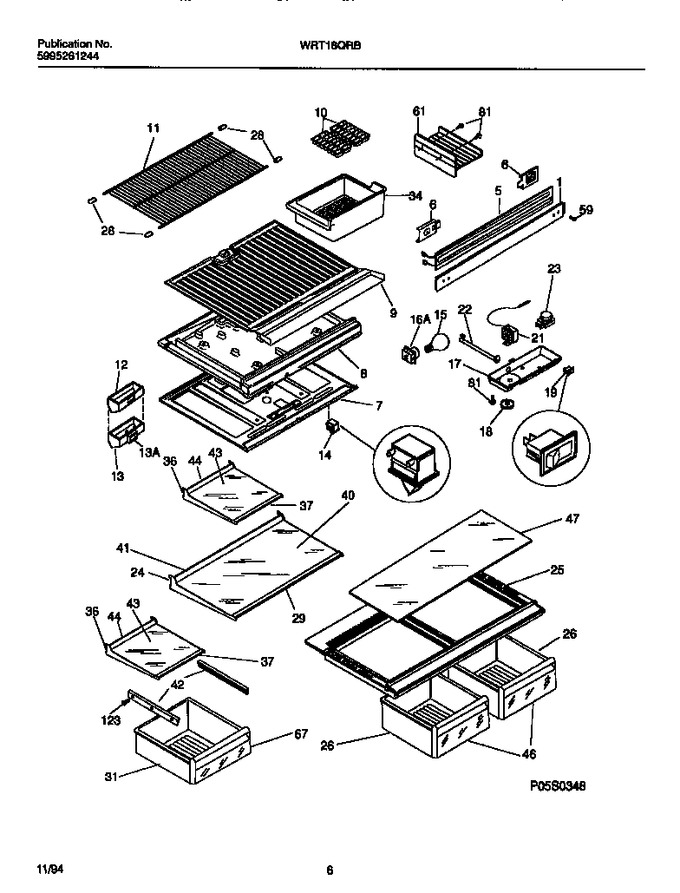

02 - Door Section


03 - Cabinet W/ Fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218222111		Mullion, Almond		Appelez-nous	-
5	218271403		Heater-mullion				$ 115.07
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	3206454		Top Panel-refr		Appelez-nous	-
8	3206456		Divider, Styrofoam		Appelez-nous	-
9	3206455		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303288242		Shelf-freezer				$ 403.31
12	5308014667		Deflector-air, W/seal		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5303299980		Box-control		Appelez-nous	-
18	5303299979		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker				$ 27.08
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	215919161		Frame-full Shelf		Appelez-nous	-
25	215681400		Cover-crisper Pan, W/beam, Less Insert		Appelez-nous	-
26	3206438		Pan-crisper			Immediately	$ 227.80
28	3201150		Cap-protector				$ 4.57
29	215919703		Trim-full Shelf, Front		Appelez-nous	-
31	215742602		Pan-meat				$ 174.40
34	5303212918		Container-ice				$ 104.66
36	215919160		Frame-half Shelf, (2)		Appelez-nous	-
37	215919709		Trim-meat Kpr Shelf, Front		Appelez-nous	-
40	215723566		Glass-full Shelf		Appelez-nous	-
41	215919803		Trim-shelf, 24.92``, Rear		Appelez-nous	-
42	218971202		Hanger-pan/tray, Lh   (Replaces: 5303298718)				$ 60.96
43	215723565		Glass-half Shelf, Refr, (2)		Appelez-nous	-
44	215919809		Trim-shelf, 12.13``, Rear				$ 35.28
46	5303304769		Front-crisper Pan, (2)		Appelez-nous	-
47	5303281398		Insert-pan Cover, Glass				$ 114.29
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
61	215781501		Shelf-ice Tray, Wire				$ 136.19
67	5303304686		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
*77043	5300170910		Clip-cantilever Shelf				$ 2.60
12A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
13A	5303200590		Extension,air Deflector,w/insulation		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
25A	5303299930		Trim-crisper Cover (non-illustrated)		Appelez-nous	-
25B	5303301393		Control-humidity (non-illustrated)		Appelez-nous	-
42A	218971302		Hanger-pan/tray, Rh   (Replaces: 5303298719)				$ 73.71
7A	5303001380		Screw		Appelez-nous	-
8A	3205266		Protector-edge (non-illustrated)				$ 80.09
8B	3018900		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-
