02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

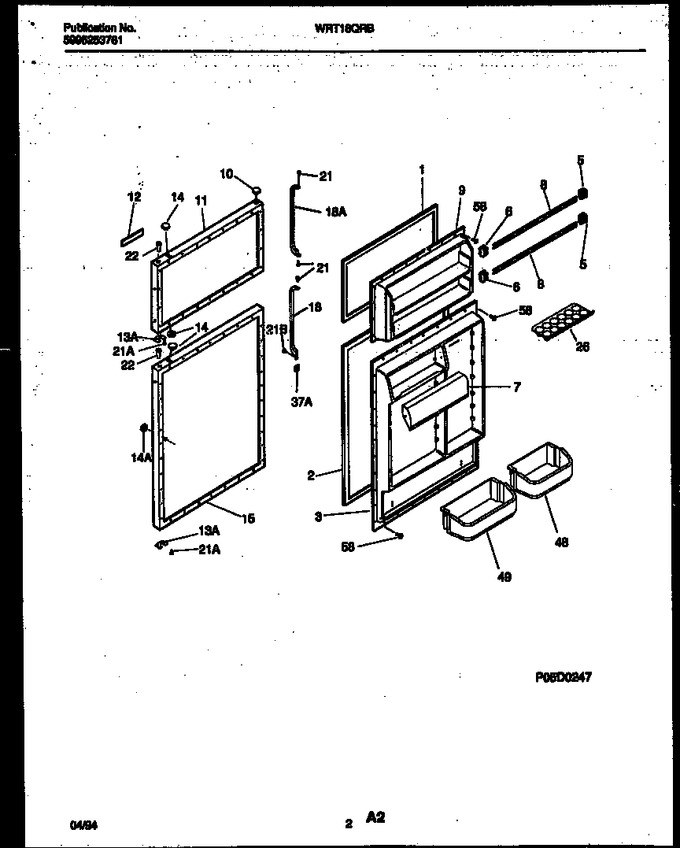

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608916		Gasket-frzr Door, White, Magnetic				$ 258.30
2	5303207345		Gasket-refr Door, White, Magnetic			Immediately	$ 188.19
3	215484101		Panel-inner Door, Refr		Appelez-nous	-
5	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
6	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
7	5303304560		Door-dairy		Appelez-nous	-
8	215366097		Rack-door, Wide		Appelez-nous	-
9	5303207343		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917309		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215490701		Nameplate Assy, White		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917359		Panel-refr Door, White, W/insulation		Appelez-nous	-
18	215915503		Handle-door,white		Appelez-nous	-
21	5303272566		Screw-handle Mtg, Cr Oval Head, 10-24(d) X 5/8, White,		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
48	215940009		Bin-door, 9.84`` Wide		Appelez-nous	-
49	215441502		Bin-door, 13.22`` Wide   (Replaces: 215441507)				$ 176.87
58	5308002748		Screw		Appelez-nous	-
*93768	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	5308000255		Door Stop				$ 42.20
14A	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
18A	215915501		Handle-door, White		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
37A	215480201		Trim-handle, End Cap, White, Refr Door		Appelez-nous	-
