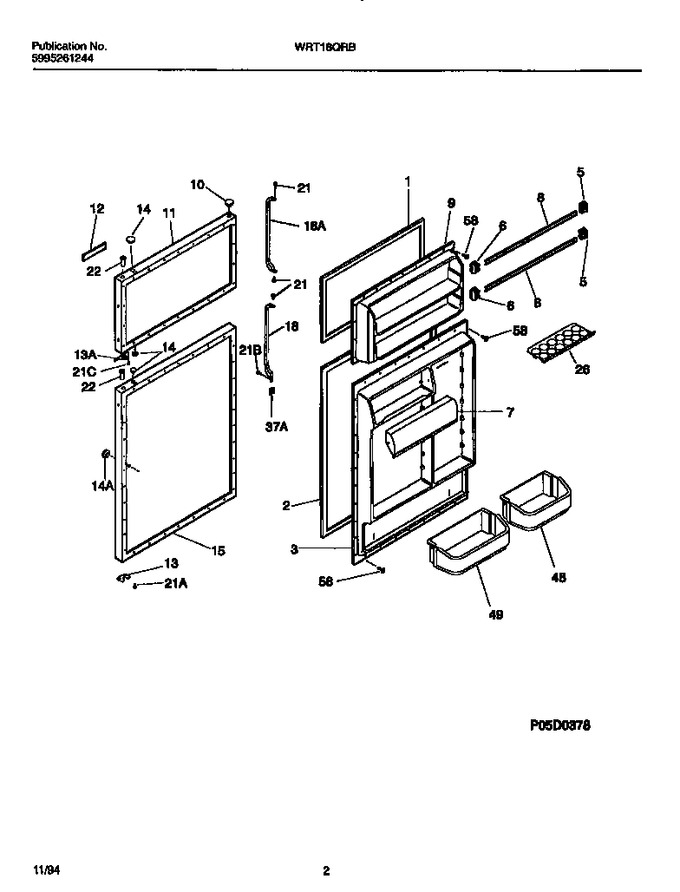

02 - Door Section


03 - Cabinet W/ Fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608916		Gasket-frzr Door, White, Magnetic				$ 258.30
2	5303207345		Gasket-refr Door, White, Magnetic			Immediately	$ 188.19
3	215484101		Panel-inner Door, Refr		Appelez-nous	-
5	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
6	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
7	5303304560		Door-dairy		Appelez-nous	-
8	215366097		Rack-door, Wide		Appelez-nous	-
9	5303207343		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917309		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215490701		Nameplate Assy, White		Appelez-nous	-
13	5308000255		Door Stop				$ 42.20
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917359		Panel-refr Door, White, W/insulation		Appelez-nous	-
18	215915539		Handle-door, 17.37``, White		Appelez-nous	-
21	218252001		Screw, No. 8 Oval Head, 10-32(ca) X 5/8, White		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
48	215441809		Bin-door		Appelez-nous	-
49	215441502		Bin-door, 13.22`` Wide   (Replaces: 215441507)				$ 176.87
58	5308002748		Screw		Appelez-nous	-
*77040	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	215220302		Label-nameplate, Grey/white Itrs (non-illustrated)		Appelez-nous	-
12B	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (non-illustrated)		Appelez-nous	-
12C	5315340760		Tape, Adhesive, 60`` Lg, Foam, Trim / Nameplate, Double Faced (non-illustrated)		Appelez-nous	-
13A	218249001		Door Stop, White, Frzr				$ 82.06
14A	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
18A	215915537		Handle-door, 17.02``, White		Appelez-nous	-
21A	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
21C	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
37A	215480205		Trim-handle, End Cap, White, Refr Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
