SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet

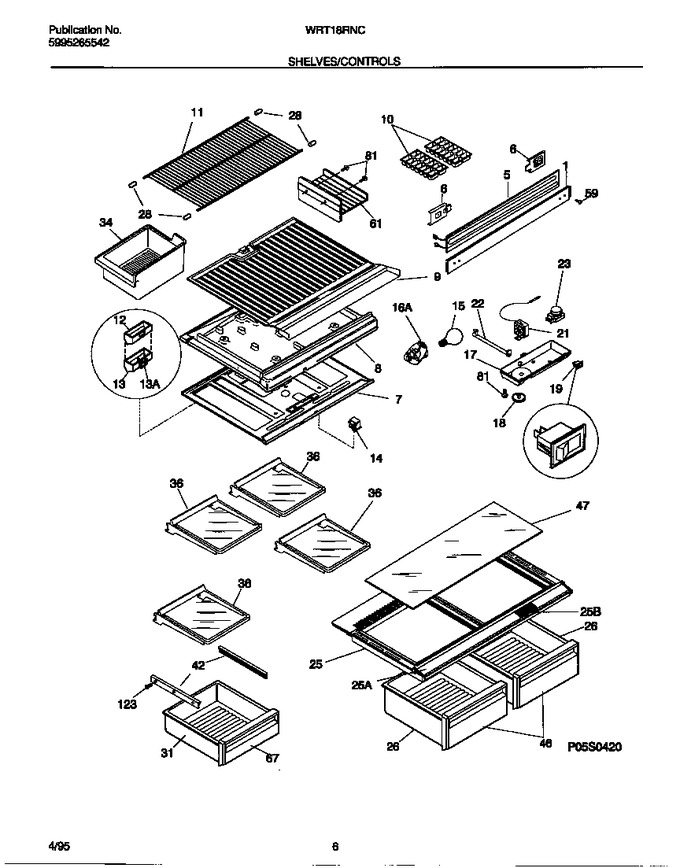

04 - Shelves/control


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218430801		Mullion, White		Appelez-nous	-
5	218271403		Heater-mullion				$ 115.07
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
9	3206455		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303288242		Shelf, Freezer, Fixed/flat, Full Width, Wire				$ 403.31
13	5303200590		Extension, Air Deflector, With Insulation		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
18	5303307352		Knob, Temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
22	3018891		Housing-temp Sensor, Plastic		Appelez-nous	-
25	5303299459		Control-humidity		Appelez-nous	-
25	5303309867		Trim-crisper Cover		Appelez-nous	-
25	215681400		Cover-crisper Pan, With Beam, Less Insert		Appelez-nous	-
26	3206438		Pan-crisper			Immediately	$ 227.80
28	3201150		Cap-protector				$ 4.57
31	215742602		Pan-meat				$ 174.40
34	5303212918		Container-ice				$ 104.66
36	215406120		Shelf, Cantilever, 12.19`` X 15.92``, Fixed, ``spill Safe``		Appelez-nous	-
46	5303309865		Front-crisper Pan		Appelez-nous	-
47	218390558		Insert-pan Cover, Glass		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
61	215781501		Shelf-ice Tray, Wire				$ 136.19
67	5303309866		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
12A	5308014667		Deflector-air, W/seal		Appelez-nous	-
12B	5303001449		Seal, Air Deflector (not Illustrated)				$ 2.12
17A	5303307349		Box, Control		Appelez-nous	-
17B	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
21A	5303305486		Control-temperature				$ 122.43
21B	5303001260		Screw				$ 6.73
23A	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
23B	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
42A	218971202		Hanger-pan/tray, Lh   (Replaces: 5303298718)				$ 60.96
42B	218971302		Hanger-pan/tray, Rh   (Replaces: 5303298719)				$ 73.71
7A	3206454		Top Panel-refr		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-
8A	3206456		Divider, Styrofoam		Appelez-nous	-
8B	3205266		Protector, Edge (not Illustrated)				$ 80.09
8C	3018900		Harness, Wiring, Control/divider (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
