View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Door
03 - Cabinet
04 - Shelves/controls
05 - System
06 - Ice Maker
New Model Search:

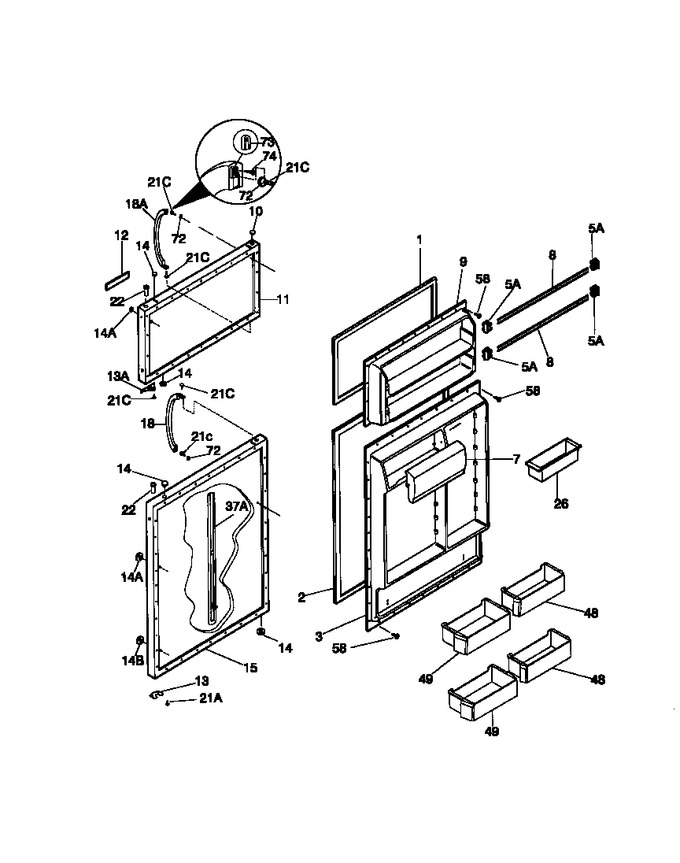

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608916 | Gasket-frzr Door, White, Magnetic |
|
$ 258.30 | |||||
| 2 | 5303207345 | Gasket-refr Door, White, Magnetic |
|
Immediately | $ 188.19 | ||||
| 3 | 218360701 | Panel-inner Door, Refr |
|
- | |||||
| 7 | 215058112 | Door-dairy, 12.96`` Wide |
|
- | |||||
| 8 | 218027041 | Rack-door, 23.81`` X 1.62`` |
|
- | |||||
| 9 | 218360101 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917582 | Panel-frzr Door, White, Rh, W/insulation |
|
- | |||||
| 12 | 218409401 | Frame-nameplate, White |
|
- | |||||
| 13 | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917586 | Panel-refr Door, White, Rh, W/insul & Brace |
|
- | |||||
| 18 | 218428104 | Handle-door, White, W/block & Screw |
|
- | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 48 | 218286005 | Bin-door |
|
- | |||||
| 49 | 5303309864 | Bin-door, Gallon |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 72 | 218397000 | Button-handle Mtg, Dovetail |
|
$ 16.74 | |||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| *96000 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 12A | 215220337 | Label-nameplate, White (not Illustrated) |
|
- | |||||
| 12B | 215518000 | Magnet-nameplate (not Illustrated) |
|
- | |||||
| 13A | 218249001 | Door Stop, White, Frzr Section |
|
$ 82.06 | |||||
| 14A | 240494001 | Plug-button, White, Refr Door Front (Replaces: 218110901) |
|
Immediately | $ 18.20 | ||||
| 14B | 218074001 | Plug-button, White, Refr Door Front |
|
$ 13.76 | |||||
| 18A | 218428101 | Handle-door, White, W/block & Screw |
|
Immediately | $ 22.73 | ||||
| 21A | 218251900 | Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed |
|
$ 10.55 | |||||
| 21C | 218252201 | Screw, No. 8 Truss Head, 10-32 X 1/2 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 37A | 218397701 | Trim-handle, 28.33``, White, With Mtg Locks |
|
- | |||||
| 37B | 215782300 | Lock-handle Trim, Snap-in (not Illustrated) |
|
$ 34.49 | |||||
| 37C | 215940700 | Lock-handle Trim, Stick-on (not Illustrated) |
|
- | |||||
| 5A | 215473602 | Support-door Rack, Rh/lh (Replaces: 215473601) |
|
Immediately | $ 11.58 |
