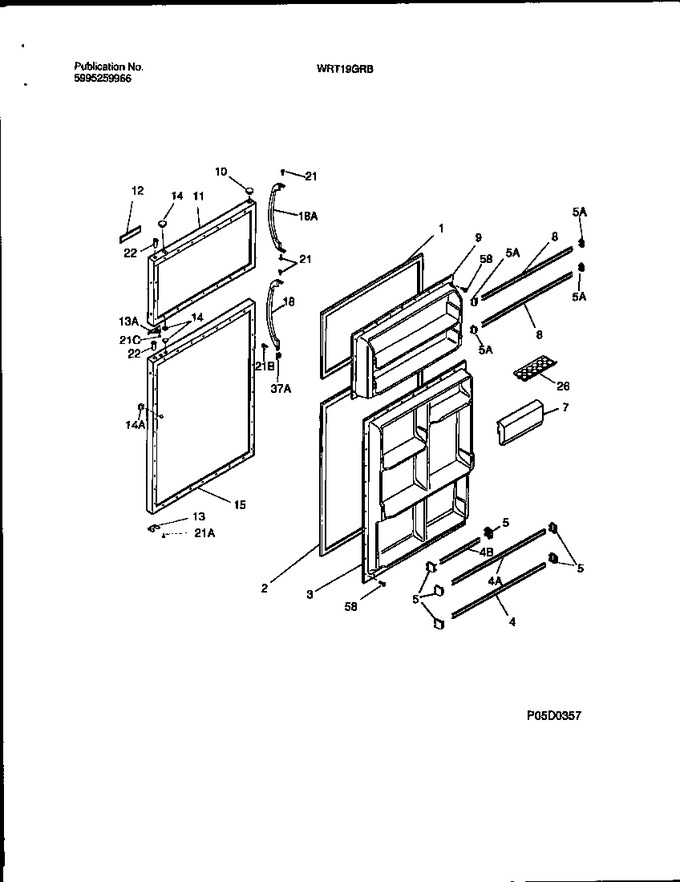

01 - Top Mount Refrigerator


02 - Door Section


03 - Cabinet W/fan Assy


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608912		Gasket-frzr Door,white,magnetic		Appelez-nous	-
2	215732413		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	215393201		Panel-inner Door, Refr		Appelez-nous	-
4	215366039		Rack - Door		Appelez-nous	-
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	215058105		Door - Dairy		Appelez-nous	-
8	215366036		Rack - Door		Appelez-nous	-
9	215466501		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917350		Panel - Frzr Door, White, W/ Insulation		Appelez-nous	-
12	215366301		Frame - Nameplate,white		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug - Button, White, Handle / Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917342		Panel - Refr Door, White, W/ Insul And Brace		Appelez-nous	-
18	215915539		Handle-door, 17.37``, White		Appelez-nous	-
21	5303272566		Screw - Handle Mtg, Oval Head, 10-24 (d) X 5/8,white, C		Appelez-nous	-
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
12A	215220302		Label - Nameplate, Gray / White Ltrs		Appelez-nous	-
12B	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double Face		Appelez-nous	-
13A	218249001		Door Stop, White, Frzr				$ 82.06
14A	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
15A	215894100		Cross Brace - Door (incl In Item 15)		Appelez-nous	-
18A	215915537		Handle-door, 17.02``, White		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21B	215733200		Screw, Cr Truss Head, 10-32 (ca) X 1/2		Appelez-nous	-
37A	215480205		Trim-handle, End Cap, White, Refr Door		Appelez-nous	-
4A	215366038		Rack - Door		Appelez-nous	-
4B	215366040		Rack - Door		Appelez-nous	-
5A	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
