02 - Door Parts


03 - Door Parts


04 - Cabinet Parts


05 - Cabinet Parts


06 - Shelves And Supports


07 - Shelves And Supports


08 - System And Automatic Defrost Parts

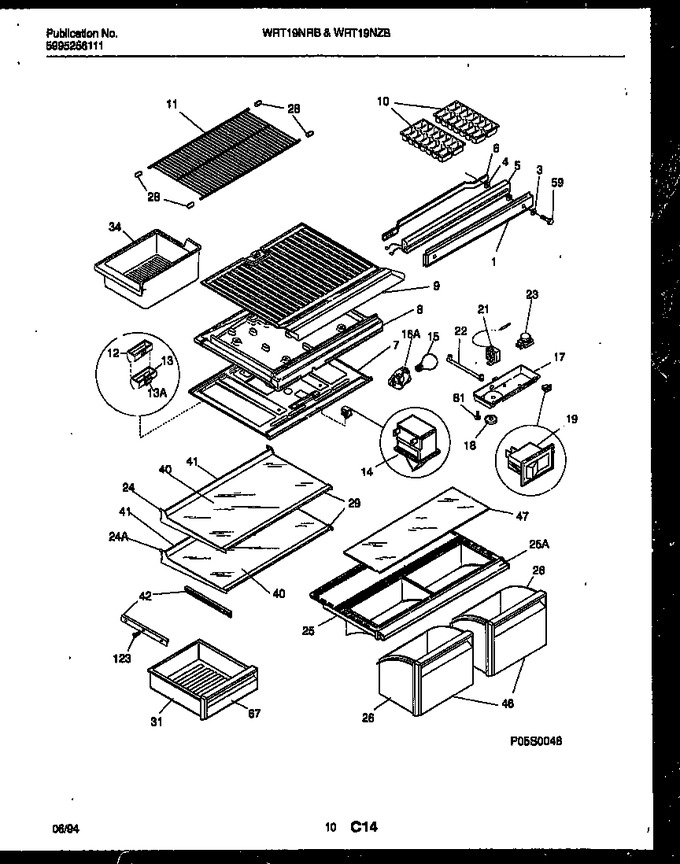

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200366		Mullion, White				$ 70.04
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	218188100		Spacer-mullion Mtg, (2)		Appelez-nous	-
5	5303210351		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	3018993		Top Panel-refr		Appelez-nous	-
8	3018994		Divider - Styrofoam		Appelez-nous	-
9	5303211427		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303283031		Shelf-freezer, Fixed/flat, Full Width, Wire				$ 120.59
12	5308014667		Deflector-air, W/seal		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5303299980		Box-control		Appelez-nous	-
18	5303299979		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver				$ 27.08
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	215919111		Frame - Full Shelf, Cantilever		Appelez-nous	-
25	215363202		Cover - Crisper Pan, Less Insert		Appelez-nous	-
26	215363301		Pan - Crisper, Tilt-out		Appelez-nous	-
28	3201150		Cap-protector				$ 4.57
29	215919704		Trim-shelf,26.12``,front		Appelez-nous	-
31	215742602		Pan-meat				$ 174.40
34	5303212918		Container-ice				$ 104.66
40	5303295998		Glass-shelf, 26.08`` X 14.57``, Clear		Appelez-nous	-
41	215919804		Trim-shelf, 26.12``, Rear		Appelez-nous	-
42	218971202		Hanger-pan/tray, Lh   (Replaces: 5303298718)				$ 60.96
46	215363404		Front - Crisper Pan		Appelez-nous	-
47	5303303763		Insert - Pan Cover, Glass		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
12A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
13A	5303200590		Extension, Air Deflector, With Insulation		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
24A	215919105		Frame-meat Kpr Shlf, Cantilever, W/ Hanger Tabs		Appelez-nous	-
25A	5303299975		Trim - Crisper Cover		Appelez-nous	-
42A	218971302		Hanger-pan/tray,rh (non-illustrated)   (Replaces: 5303298719)				$ 73.71
7A	5303001380		Screw		Appelez-nous	-
8A	3018900		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-
8B	3205266		Protector-edge (non-illustrated)				$ 80.09
