01 - Top Mount Refrigerator


02 - Door Section


03 - Cabinet W/fan Assembly

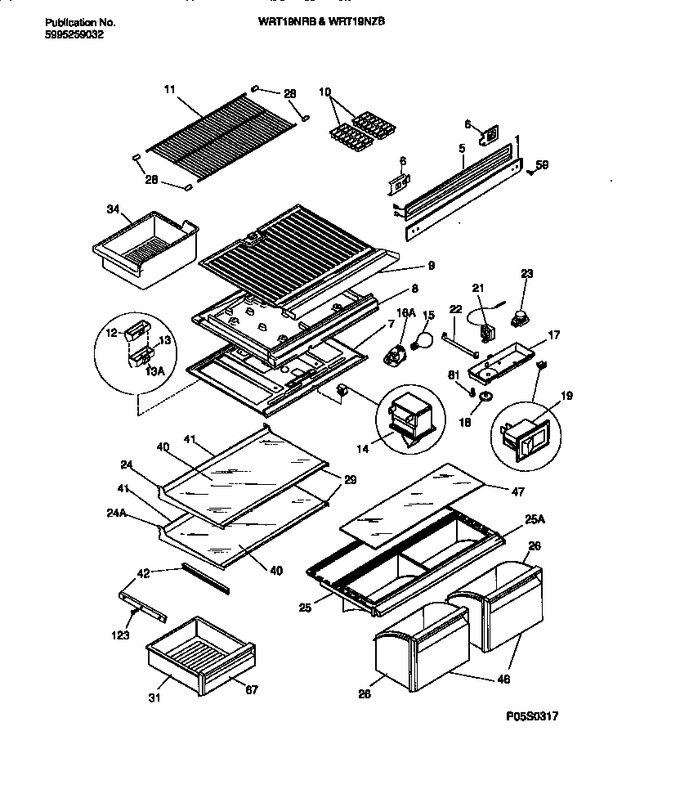

04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218252503		Mullion, White		Appelez-nous	-
5	218271402		Heater-mullion		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	3018993		Top Panel-refr (non-illustrated)		Appelez-nous	-
8	3018994		Divider - Styrofoam		Appelez-nous	-
9	5303211427		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice,plastic (optiional Accessory)			Immediately	$ 6.07
11	5303283031		Shelf-freezer,foxed/flat,full Width Wire				$ 120.59
12	5308014667		Deflector-air, W/seal		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5303299980		Box-control		Appelez-nous	-
18	5303299979		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver				$ 27.08
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	215919111		Frame-full Shlf, Cantilever		Appelez-nous	-
25	215363202		Cover - Crisper Pan, Less Insert		Appelez-nous	-
26	215363301		Pan-crisper Cover		Appelez-nous	-
28	3201150		Cap-protector				$ 4.57
29	215919704		Trim-shelf,26.12``,front		Appelez-nous	-
31	215742602		Pan-meat				$ 174.40
34	5303212918		Container-ice				$ 104.66
40	5303212918		Container-ice				$ 104.66
41	215919804		Trim-shelf, 26.12``, Rear		Appelez-nous	-
42	218971202		Hanger-pan/tray, Lh   (Replaces: 5303298718)				$ 60.96
46	215363404		Front - Crisper Pan		Appelez-nous	-
47	5303303763		Insert - Pan Cover, Glass		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
67	5303304686		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
11A	218159700		Spacer-frzr Shelf (non-illustrated)		Appelez-nous	-
12A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
13A	5303200590		Extension,air Deflector,w/insulation		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
24A	215919105		Frame-meat Kpr Shlf,cantlever, W/hanger Tabs		Appelez-nous	-
25A	5303299975		Trim - Crisper Cover		Appelez-nous	-
42A	218971302		Hanger-pan/tray,rh (non-illustrated)   (Replaces: 5303298719)				$ 73.71
7A	5303001380		Screw		Appelez-nous	-
8A	3205266		Protector-edge (non-illustrated)				$ 80.09
