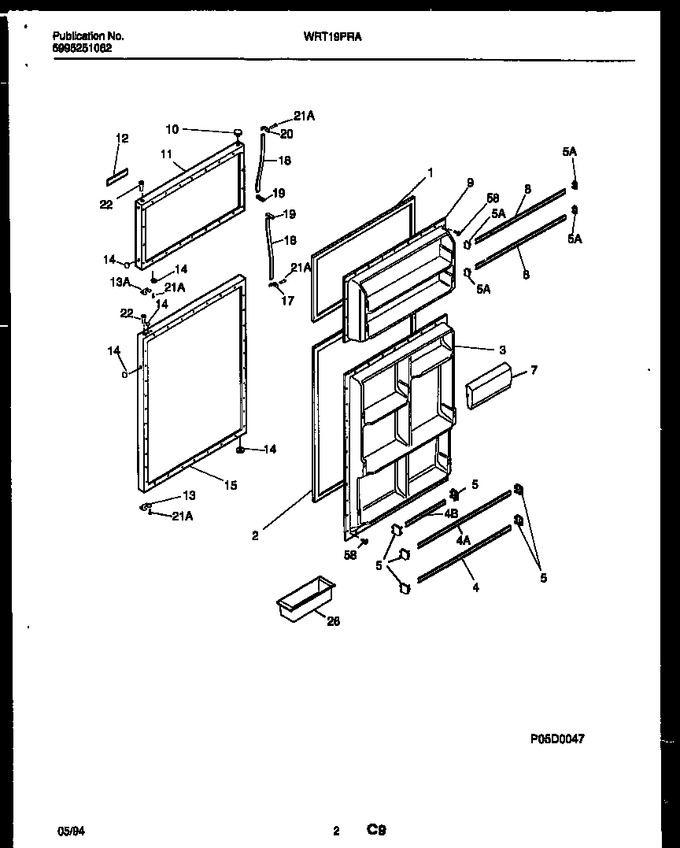

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303276826 | Gasket-frzr Door, Magnetic, Almond |
|
$ 115.08 | |||||
| 2 | 5303275772 | Gasket-refr Door, Magnetic, Almond |
|
- | |||||
| 3 | 215393201 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215366039 | Rack - Door |
|
- | |||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 7 | 215058102 | Door-dairy |
|
- | |||||
| 8 | 215366036 | Rack - Door |
|
- | |||||
| 9 | 215466501 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5318984511 | Panel-frzr Door, Almond, W/insulation |
|
- | |||||
| 12 | 215490711 | Nameplate Assy, Almond |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5318964411 | Panel-refr Door, Almond, W/insulation, & Cross Brace |
|
- | |||||
| 17 | 215364800 | Handle End |
|
$ 73.92 | |||||
| 18 | 5303015111 | Handle-door |
|
- | |||||
| 19 | 215365000 | Handle End, (2) |
|
- | |||||
| 20 | 215364900 | Handle End |
|
$ 108.52 | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *98296 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 13A | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 18A | 5303211209 | Insert-handle Grip, Almond, (non-illustrated) |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 4A | 215366038 | Rack - Door |
|
- | |||||
| 4B | 215366040 | Rack - Door |
|
- | |||||
| 5A | 215473602 | Support-door Rack, Rh/lh (Replaces: 215473601) |
|
Immediately | $ 11.58 |
