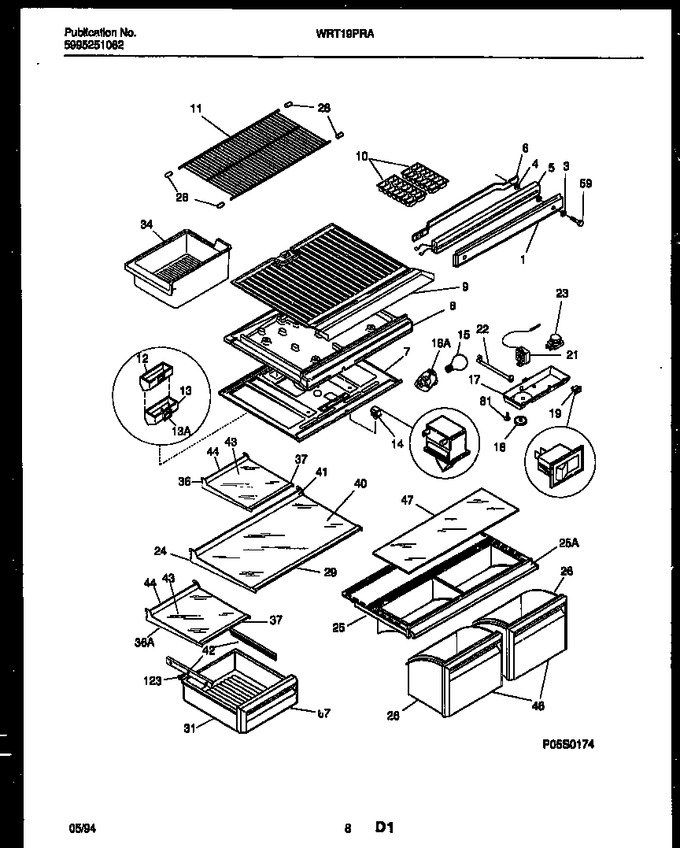

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200366		Mullion, White				$ 70.04
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	5303200464		Spacer-mullion Mtg, Steel		Appelez-nous	-
5	5303210351		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	3018993		Top Panel-refr		Appelez-nous	-
8	3018994		Divider - Styrofoam		Appelez-nous	-
9	5303211427		Bottom Panel-frzr		Appelez-nous	-
10	5303001324		Tray-ice, Plastic, (2)		Appelez-nous	-
11	5303283031		Shelf, Freezer, Straight				$ 120.59
12	5308014667		Deflector-air, W/seal		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5303299980		Box-control		Appelez-nous	-
18	5303299979		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver				$ 27.08
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	215069024		Frame-full Shelf, Cantilever		Appelez-nous	-
25	215363202		Cover - Crisper Pan, Less Insert		Appelez-nous	-
26	215363301		Pan - Crisper, Tilt-out		Appelez-nous	-
28	3201150		Cap-protector				$ 4.57
29	5303280080		Trim-shelf, 26.12``, Front		Appelez-nous	-
31	215742602		Pan-meat				$ 174.40
34	5303212918		Container-ice				$ 104.66
36	215069005		Frame-half Shelf, Cantilever		Appelez-nous	-
37	5303280078		Trim-shelf, 12.59``, Front		Appelez-nous	-
40	5303280006		Glass-shelf, 26.08`` X 14.57``		Appelez-nous	-
41	5303284470		Trim-shelf, 26.12``, Rear		Appelez-nous	-
42	218971202		Hanger-pan/tray, Lh   (Replaces: 5303298718)				$ 60.96
42	218971302		Hanger-pan/tray, Rh   (Replaces: 5303298719)				$ 73.71
43	5303280005		Glass-shelf, 12.55`` X 14.57``		Appelez-nous	-
44	5303284471		Trim-shelf, 12.59``, Rear		Appelez-nous	-
46	215363401		Front-crisper Pan		Appelez-nous	-
47	5303299465		Insert-pan Cover, Glass		Appelez-nous	-
59	5308012258		Screw				$ 2.25
67	5303299976		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
*98313	5303211351		Lock-shelf Trim, Rear		Appelez-nous	-
*98313	5300170910		Clip-cantilevr Shlf				$ 2.60
12A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
13A	5303200590		Extension, Air Deflector, With Insulation		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
25A	5303299975		Trim - Crisper Cover		Appelez-nous	-
29A	5303209274		Retainer-glass (non-illustrated)		Appelez-nous	-
36A	215069041		Frame-meat Kpr Shlf, Cantilever, Half Width		Appelez-nous	-
37A	5303209263		Retainer-glass (non-illustrated)		Appelez-nous	-
7A	5303001380		Screw		Appelez-nous	-
8A	3018900		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-
8B	3205266		Protector-edge (non-illustrated)				$ 80.09
