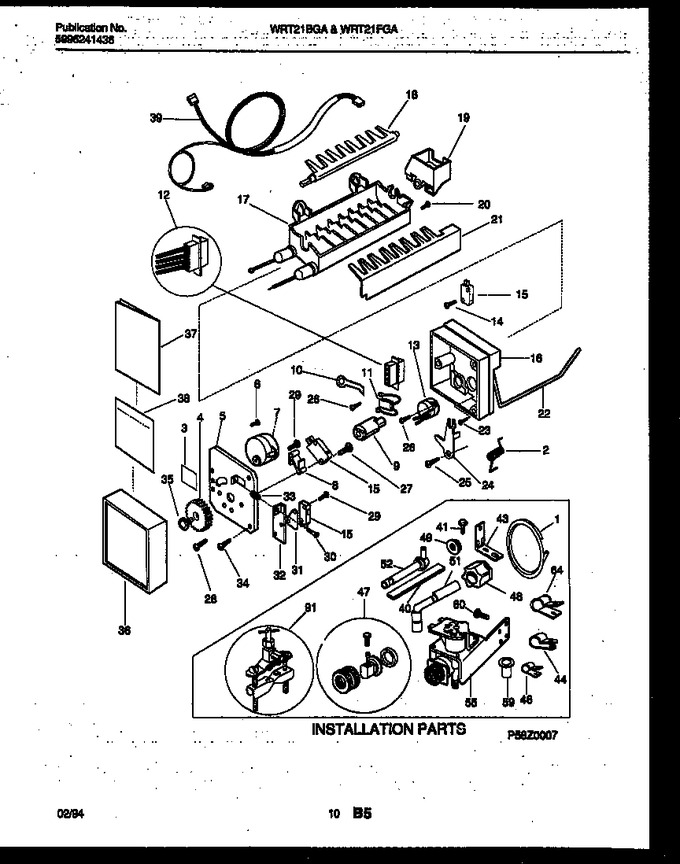

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
06 - Ice Maker And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5314368805 | Tube-valve To Im, Plastic |
|
- | |||||
| 2 | 3206348 | Spring, Shut-off Arm |
|
- | |||||
| 3 | 3206299 | Plate-i.d. |
|
- | |||||
| 4 | 3206301 | Gear |
|
- | |||||
| 5 | 3206303 | Plate-mounting |
|
$ 47.41 | |||||
| 6 | 3206305 | Screw-ground Wire, 8-32 X 1/4 |
|
- | |||||
| 7 | 5303918277 | Motor-ice Maker (Replaces: 3206306) |
|
Immediately | $ 96.11 | ||||
| 8 | 3206312 | Spacer-holding Sw |
|
- | |||||
| 9 | 3206313 | Cam |
|
- | |||||
| 10 | 3206315 | Clamp |
|
$ 35.33 | |||||
| 11 | 3206319 | Thermal Cutoff Assy |
|
$ 48.72 | |||||
| 12 | 3206349 | Harness-wiring, Internal Im, With Plug |
|
$ 130.20 | |||||
| 12 | 3206321 | Plug, ``only`` |
|
$ 29.82 | |||||
| 13 | 3206322 | Thermostat Assy,ice Maker |
|
$ 130.41 | |||||
| 14 | 3206323 | Screw-sw To Support, 4-24 X 3/4, (2) |
|
- | |||||
| 15 | 5304456667 | Switch,(3) (Replaces: 3206324) |
|
$ 92.53 | |||||
| 16 | 3206326 | Support |
|
- | |||||
| 17 | 3206327 | Mold-body Assy, With Heater |
|
- | |||||
| 18 | 3206328 | Ejector |
|
- | |||||
| 19 | 3206330 | Bearing & Inlet |
|
- | |||||
| 20 | 3206331 | Screw, 8-18 X 3/8, (2) |
|
- | |||||
| 21 | 3206332 | Ice Stripper |
|
- | |||||
| 22 | 3206333 | Arm, Shut-off |
|
- | |||||
| 23 | 3206334 | Screw - Sup / Mold Body, 8-18 X 1, (4) |
|
- | |||||
| 24 | 5304456675 | Lever-arm (Replaces: 3206335) |
|
$ 66.63 | |||||
| 25 | 3206336 | Screw-arm Levr/sprt, 8-18 X 9/16 |
|
- | |||||
| 26 | 3206337 | Screw-thermo/sprt, 4-24 X 3/8, (4) |
|
- | |||||
| 27 | 3206338 | Screw-sw & Spcr/plate, 4-40 X 1, (2) |
|
- | |||||
| 28 | 3206339 | Screw-timing Stop, 4-40 X 3/8 |
|
- | |||||
| 29 | 3206340 | Screw-mtr & Sw/plate, 4-40 X 3/4, (4) |
|
- | |||||
| 30 | 3206341 | Screw-timing, 8-32 X 1 |
|
- | |||||
| 31 | 3206342 | Insulator |
|
- | |||||
| 32 | 3206343 | Plate-valve Switch |
|
- | |||||
| 33 | 3206344 | Spring |
|
- | |||||
| 34 | 3206345 | Screw - Mtg Plate / Sprt, 8-18 X 7/16, (3) |
|
- | |||||
| 35 | 3206346 | Screw - Gear / Cam, 6-20 X 0.437 |
|
- | |||||
| 36 | 3206347 | Cover-complete |
|
$ 29.24 | |||||
| 37 | 5303207442 | Data Sheet |
|
- | |||||
| 38 | 5303207445 | Envelope-data Sheet |
|
- | |||||
| 39 | 3206358 | Harness-wiring, Ice Maker |
|
- | |||||
| 40 | 5305877995 | Sealing Strip |
|
Immediately | $ 55.29 | ||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 43 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 44 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 46 | 5303001193 | Clamp-inlet Tube, Metal |
|
$ 16.30 | |||||
| 47 | 3206360 | Adapter-water Sply |
|
$ 94.66 | |||||
| 48 | 5308000200 | Nut, 7/16 X 20, Nylon |
|
- | |||||
| 49 | 5303001147 | Plug-harness Hole, (2) |
|
$ 22.30 | |||||
| 51 | 5308000239 | Extension-inlet Tube, S X S & Sd Only |
|
- | |||||
| 52 | 5308010269 | Tube-water Inlet |
|
- | |||||
| 55 | 3206356 | Valve-water |
|
- | |||||
| 55 | 5303015102 | Cap-water Valve (non-illustrated) |
|
- | |||||
| 59 | 5303001191 | Sleeve-tube Insert |
|
$ 6.72 | |||||
| 60 | 5308010253 | Screw |
|
- | |||||
| 64 | 5304455846 | Clamp-copper Tube, Steel (Replaces: 5303001549) |
|
$ 10.63 | |||||
| 91 | 65801LF | Saddle-valve Kit (Replaces: 5308000247) |
|
Immediately | $ 8.27 |
