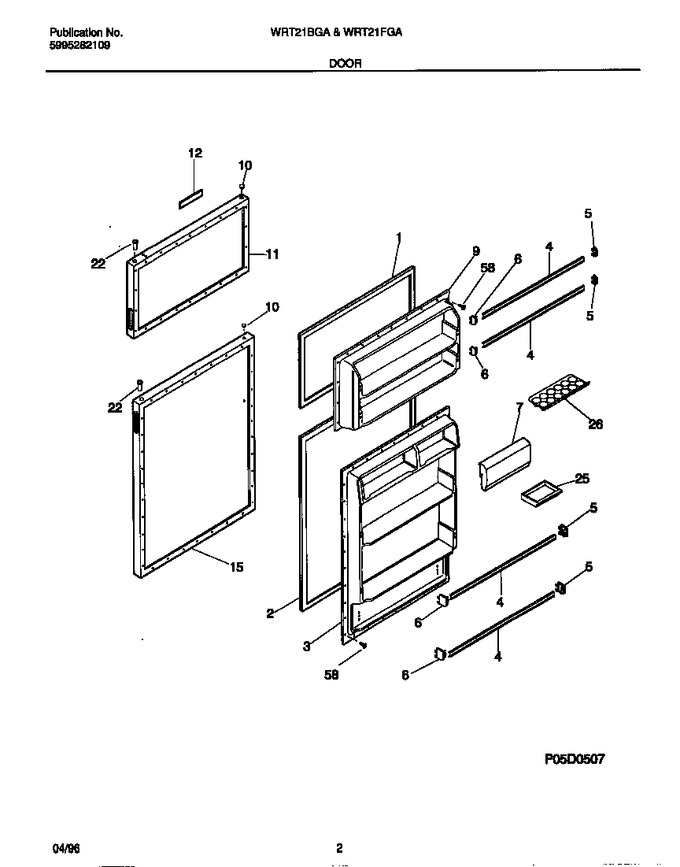

02 - Door
03 - Cabinet
04 - Shelves/controls
05 - System
06 - Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608963 | Gasket-frzr Door, Brown, Magnetic |
|
- | |||||
| 2 | 215732463 | Gasket-refr Door, Brown, Magnetic |
|
- | |||||
| 3 | 218658901 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303281388 | Rack-door, 25.56`` X 1.58`` |
|
- | |||||
| 5 | 5303007295 | Support-door Rack, Rh |
|
$ 32.55 | |||||
| 6 | 5303007297 | Support-door Rack, Lh |
|
$ 64.58 | |||||
| 9 | 5318540802 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917736 | Panel-frzr Door, White |
|
- | |||||
| 15 | 5303917738 | Panel-refr Door, White |
|
- | |||||
| 22 | 218519300 | Bearing-hinge |
|
$ 14.60 | |||||
| 25 | 5308000716 | Dish-butter |
|
$ 20.48 | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 58 | 5303314236 | Screw, Truss/ph Head, 8-18ab X 0.500 |
|
- | |||||
| *61920 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 7A | 5303295111 | Door-dairy |
|
- | |||||
| 7B | 5303001380 | Screw |
|
- |
