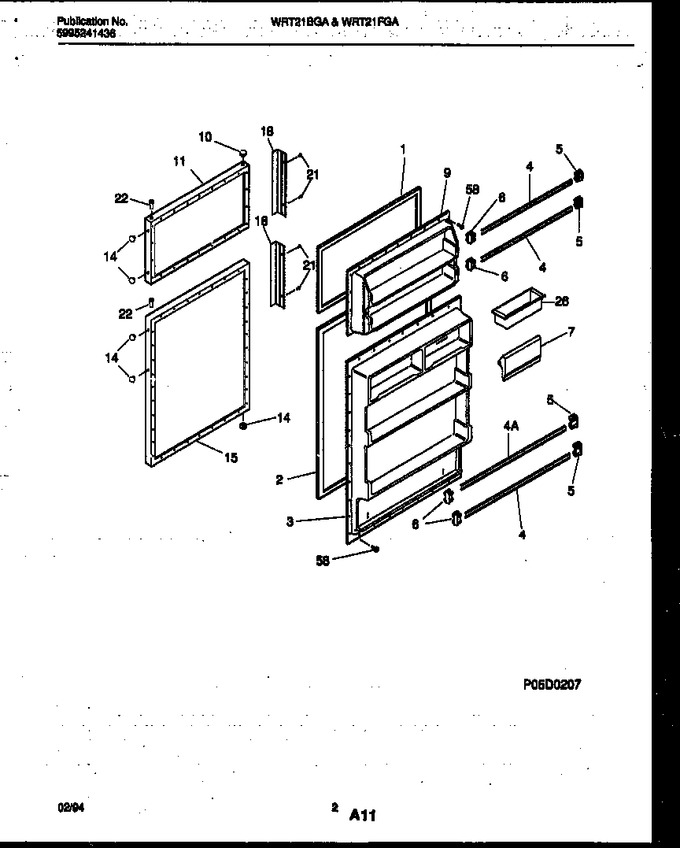

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
06 - Ice Maker And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308017483 | Gasket, Frzr Door, Magnetic |
|
- | |||||
| 2 | 5308017487 | Gasket, Refr Door, Magnetic |
|
- | |||||
| 3 | 5303212482 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303281388 | Rack-door, (3) |
|
- | |||||
| 5 | 5303007295 | Support-door Rack, Rh, (4) |
|
$ 32.55 | |||||
| 6 | 5303007297 | Support-door Rack, Lh, (4) |
|
$ 64.58 | |||||
| 7 | 5303300066 | Door-dairy |
|
- | |||||
| 9 | 5303205118 | Bracket-motor Mtg, Front |
|
- | |||||
| 9 | 5318540802 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 3916378 | Panel-frzr Door, Almond, W/insulation |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 3916382 | Panel-refr Door, Almond, W/ Insulation |
|
- | |||||
| 18 | 215164904 | Handle - Door, 8`` Long, Black Vinyl |
|
- | |||||
| 21 | 5308013645 | Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2 |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *86044 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 4A | 5303281387 | Rack-door |
|
- |
