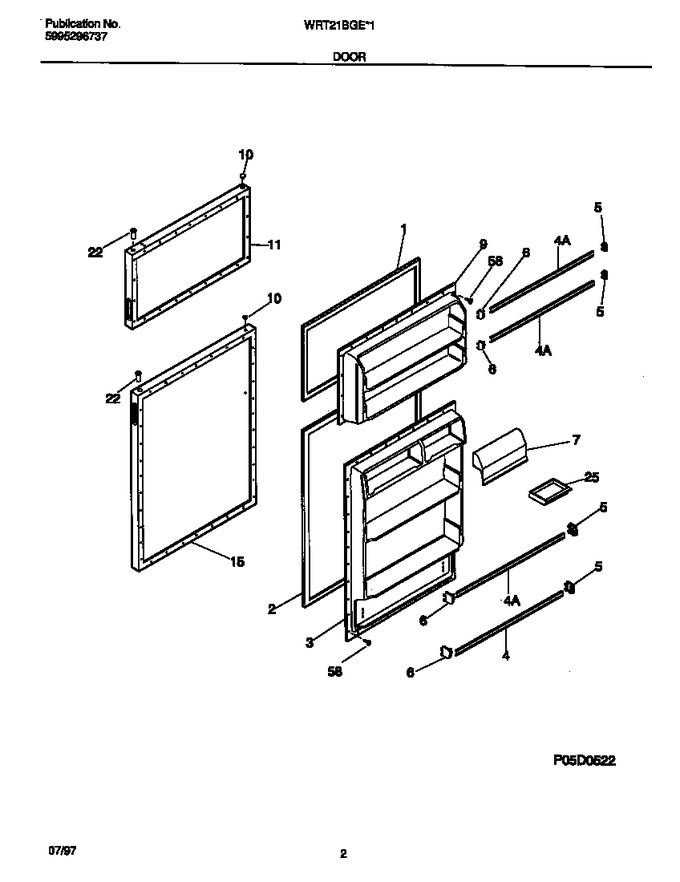

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608913		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730609		Gasket-refr Door, White, Magnetic				$ 207.27
3	218658901		Panel-inner Door, Refr		Appelez-nous	-
4	5303281387		Rack-door, 25.25`` X 1.58``		Appelez-nous	-
4	5303281388		Rack-door, 25.56`` X 1.58``		Appelez-nous	-
5	5303007295		Support-door Rack, Rh				$ 32.55
6	5303007297		Support-door Rack, Lh				$ 64.58
7	5303295111		Door-dairy		Appelez-nous	-
9	5318540802		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917736		Panel-frzr Door, White, With Handles &, Foam Insulation		Appelez-nous	-
15	5303917738		Panel-refr Door, White, With Handles, Insul, & Brace		Appelez-nous	-
22	218519300		Bearing-hinge				$ 14.60
25	5308000716		Dish-butter				$ 20.48
58	218749600		Screw, 10 Pan Head, 8-18 X 0.500				$ 5.15
*20120	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
