Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP596669 Clamp, Hose   (Replaces: 272846) In-Stock Immediately $ 7.56

3 356349 Hose, Water Inlet Appelez-nous -
4 WP596669 Clamp, Hose   (Replaces: 272847) In-Stock Immediately $ 7.56

6 366072 Inlet, Water Appelez-nous -
7 355584 Flapper Appelez-nous -
8 355852 Plate, Snubber Appelez-nous -
9 381978 Ring & Filter, Tub (includes Illus. 8 & 41) Appelez-nous -
10 359757 Seal, Tub Ring Appelez-nous -
11 358404 Basket Appelez-nous -
12 96384 Block, Drive Special Order $ 32.89

13 W10814296 Gasket, Centerpost   (Replaces: 96690) In-Stock Immediately $ 8.26

14 359592 Tub Appelez-nous -
15 WP358237 Screw & Washer, Tub (4)   (Replaces: 370571) In-Stock Immediately $ 7.97

22 93553 Hose, Tub Outlet Appelez-nous -
23 358431 Cap, Agitator Appelez-nous -
24 9421321 Clip, Hose Appelez-nous -
25 363633 Agitator & Insert Assembly Special Order $ 68.97

26 358440 Stud, Agitator Shaft Appelez-nous -
27 WP21366 Nut, Spanner   (Replaces: 21366) In-Stock Immediately $ 8.00

28 351830 Seal Special Order $ 5.84

29 360804 Air Dome Assembly Appelez-nous -
30 WP353244 Hose, Pressure Switch   (Replaces: 353405) In-Stock Immediately $ 53.94

31 359763 Clip, Tub Ring (4) Appelez-nous -
32 84091 Manifold Appelez-nous -
33 358339 Bracket, Hose Appelez-nous -
34 WP273556 Screw, 10-16 X 5/8   (Replaces: 357640) In-Stock Immediately $ 7.04

36 DE81-06162A Hose   (Replaces: 92231) Special Order $ 78.75

38 WP285655 Clamp, Hose   (Replaces: 272858) In-Stock Immediately $ 7.55

40 357249 Latch Appelez-nous -
41 359785 Filter Element Assembly Appelez-nous -
42 176360 Screw (2) Appelez-nous -
43 357250 Retainer Appelez-nous -
44 94403 Spring Appelez-nous -
46 358115 Harness, Base Appelez-nous -
46 357346 Hose, Pump To Filter Appelez-nous -
46 359327 Harness, Console Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

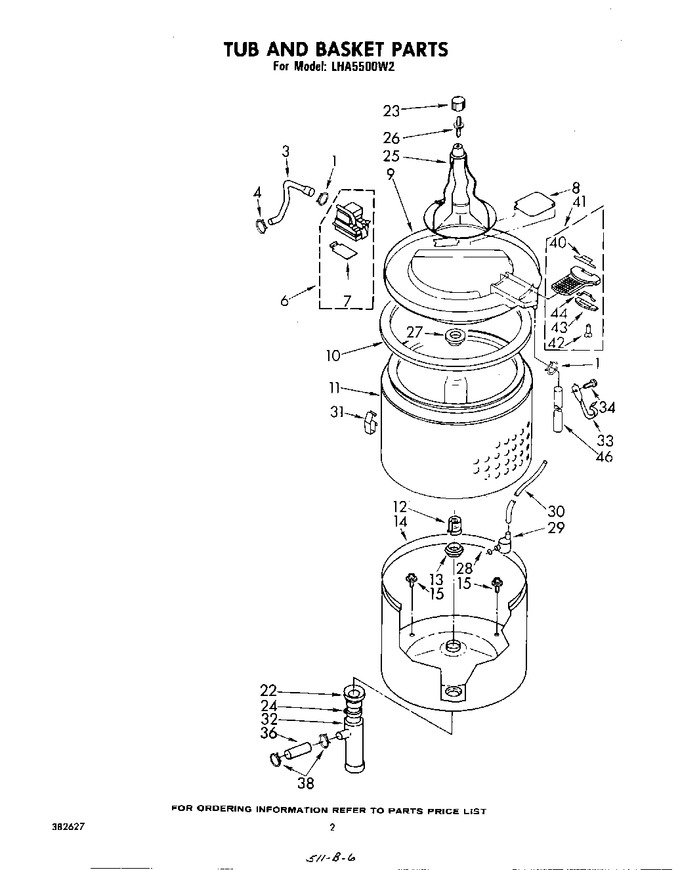

Diagram for LHA5500W2
