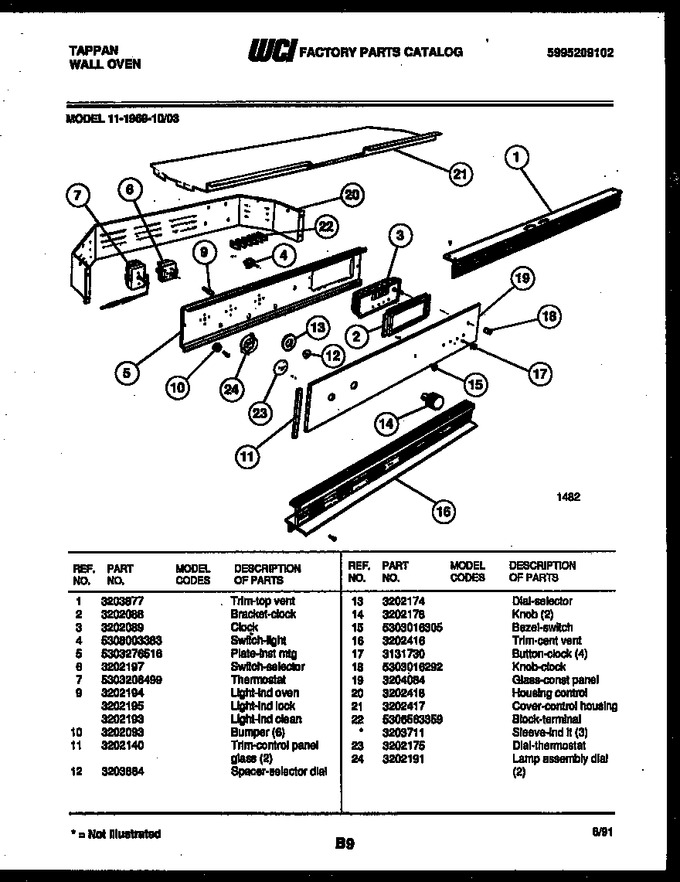

02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203877 | Trim-top Vent |
|
- | |||||
| 2 | 3202088 | Bracket-clock |
|
- | |||||
| 3 | 3202089 | Clock |
|
- | |||||
| 4 | 5308003383 | Switch-light |
|
- | |||||
| 5 | 5303276516 | Plate-inst Mtg |
|
- | |||||
| 6 | 3202197 | Switch, Selector |
|
- | |||||
| 7 | 5303206499 | Thermostat |
|
- | |||||
| 9 | 3202195 | Light-ind Lock |
|
- | |||||
| 9 | 3202194 | Light-ind Oven |
|
- | |||||
| 9 | 3202193 | Light-ind Clean |
|
- | |||||
| 10 | 3202093 | Bumper (6) |
|
- | |||||
| 11 | 3202140 | Trim, Control Panel Glass (2) |
|
- | |||||
| 12 | 3203884 | Spacer-selector Dial |
|
- | |||||
| 13 | 3202174 | Dial-selector |
|
- | |||||
| 14 | 3202178 | Knob (2) |
|
- | |||||
| 15 | 5303016305 | Bezel - Switch |
|
- | |||||
| 16 | 3202416 | Trim-cent. Vent |
|
- | |||||
| 17 | 3131730 | Button-clock (4) |
|
- | |||||
| 18 | 5303016292 | Knob-clock |
|
- | |||||
| 19 | 3204084 | Glass-const. Panel |
|
- | |||||
| 20 | 3202418 | Housing-control |
|
- | |||||
| 21 | 3202417 | Cover-control Housing |
|
- | |||||
| 22 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 23 | 3202175 | Dial-thermostat |
|
- | |||||
| 24 | 3202191 | Lamp Assembly Dial (2) |
|
- | |||||
| 22A | 3203711 | Sleeve-ind It (3) (non-illustrated) |
|
- |
