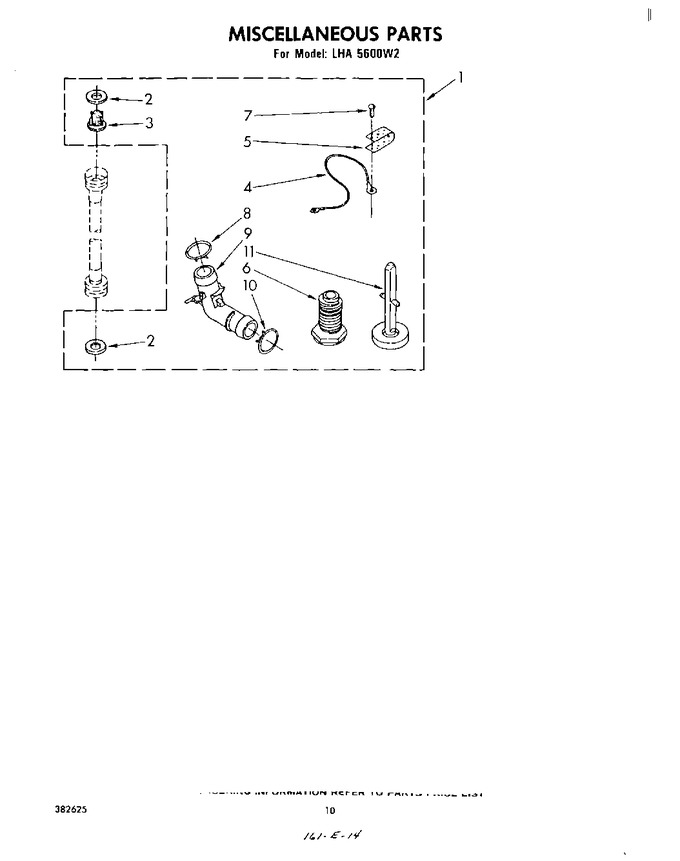

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	375962		Miscellaneous Parts Bag		Appelez-nous	-
2	WP16123		Washer, Inlet Hose (1-1/16 X 5/8) (4)   (Replaces: 16123)				$ 6.93
3	285452A		Screen, Filter (2)   (Replaces: 355521)			Immediately	$ 8.31
4	364089		Wire, Ground		Appelez-nous	-
5	22965		Strap, Ground		Appelez-nous	-
6	WP367594		Foot, Front (2)   (Replaces: 367594)			Immediately	$ 18.46
7	132848		Screw, Ground (10-24 X 1)		Appelez-nous	-
8	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
9	95440		Connector, Hose				$ 22.55
10	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 7.55
11	WP358594		Foot, Rear (2)   (Replaces: 358594)				$ 12.24
11	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
11	261888		New Avocado		Appelez-nous	-
11	261890		Golden Harvest		Appelez-nous	-
11	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
11	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
11	372845		Instructions, Installation		Appelez-nous	-
11	358770		Guide, Laundry		Appelez-nous	-
11	379236		Instructions, Operating		Appelez-nous	-
11	382226		Label, Energy Guide		Appelez-nous	-
11	799351		Thinner (1 Gal.)		Appelez-nous	-
11	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
11	382625		List, Repair Parts		Appelez-nous	-
11	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
11	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
11	350941		Leveler (thinner)		Appelez-nous	-
11	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
