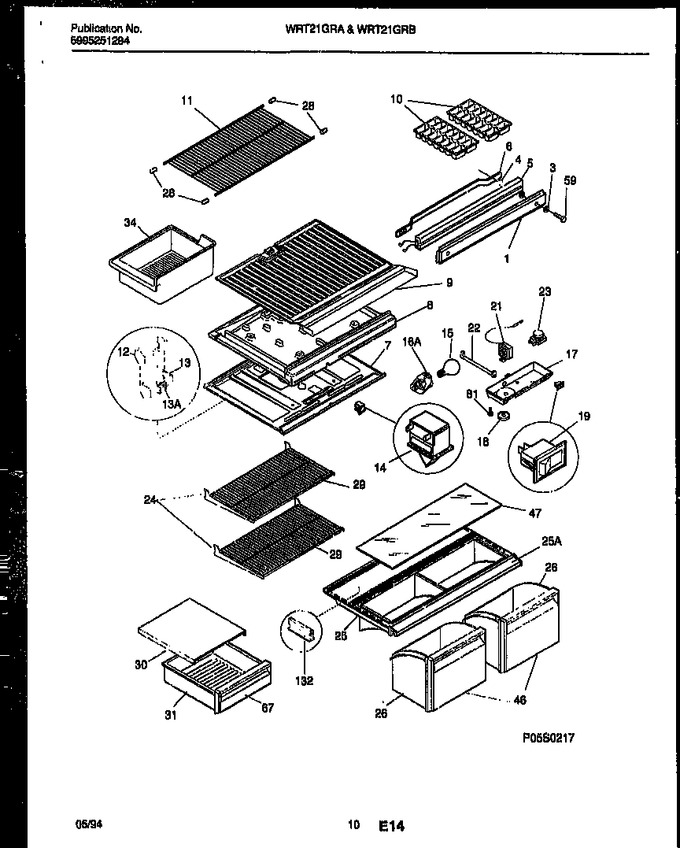

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200366		Mullion, White				$ 70.04
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	5303200464		Spacer-mullion Mtg, Steel		Appelez-nous	-
5	5303210351		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	3019038		Top Panel-refr		Appelez-nous	-
8	5303019039		Divider, Styrofoam		Appelez-nous	-
9	5303210641		Bottom Panel-frzr		Appelez-nous	-
10	5303001324		Tray-ice, Plastic, (2)		Appelez-nous	-
11	5303288243		Shelf-freezer, Straight		Appelez-nous	-
12	5308014667		Deflector-air, W/seal		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5303299980		Box-control		Appelez-nous	-
18	5303299979		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver				$ 27.08
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	5303300042		Shelf, Cantilever, Full Width, Wire		Appelez-nous	-
25	215363203		Cover-crisper Pan, Less Insert		Appelez-nous	-
26	215363301		Pan - Crisper, Tilt-out		Appelez-nous	-
28	3201150		Cap-protector				$ 4.57
29	5303280077		Trim-shelf, 26.80``, Front		Appelez-nous	-
30	3206205		Cover - Meat Pan		Appelez-nous	-
31	3206209		Pan-meat				$ 183.70
46	215363401		Front-crisper Pan		Appelez-nous	-
47	5303299465		Insert-pan Cover, Glass		Appelez-nous	-
59	5308012258		Screw				$ 2.25
67	5303300034		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
132	215426600		Support-crisper Cvr, Rear		Appelez-nous	-
13A	5303200590		Extension, Air Deflector, With Insulation		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
25A	5303299975		Trim - Crisper Cover		Appelez-nous	-
NI	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
NI	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
NI	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
NI	5303001380		Screw		Appelez-nous	-
NI	5303001260		Screw				$ 6.73
NI	3019040		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-
NI	3205266		Protector-edge (non-illustrated)				$ 80.09
