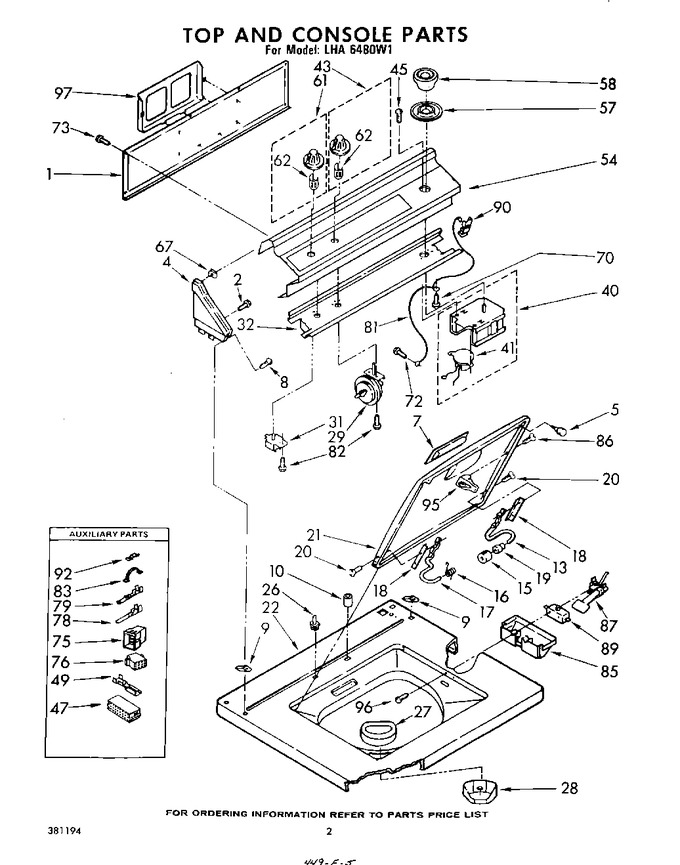

02 - Top And Console , Lit/optional


03 - Drive


04 - Tub And Basket


05 - Cabinet


06 - Gearcase


07 - Basket Drive And Brake


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	359373		Panel, Rear Console		Appelez-nous	-
2	355326		Screw		Appelez-nous	-
4	377043		Cap, End (l.h.) (almond)		Appelez-nous	-
4	377047		Cap, End (l.h.) (new Avocado)		Appelez-nous	-
4	377048		Cap, End (l.h.) (golden Harvest Cap, End (r.h.))		Appelez-nous	-
4	371918		Cap, End (l.h.) (white)		Appelez-nous	-
4	377041		Cap, End (l.h.) (almond)		Appelez-nous	-
4	377042		Cap, End (l.h.) (coffee)		Appelez-nous	-
4	377045		Cap, End (l.h.) (new Avocado)		Appelez-nous	-
4	377046		Cap, End (l.h.) (golden Harvest)		Appelez-nous	-
4	371922		Cap, End (l.h.) (white)		Appelez-nous	-
4	377044		Cap, End (l.h.) (coffee)		Appelez-nous	-
5	WP9724509		Bumper, Rubber (2)   (Replaces: 93770)			Immediately	$ 7.14
7	379885		Handle, Lid (almond)		Appelez-nous	-
7	379888		Handle, Lid (golden Harvest)		Appelez-nous	-
7	379887		Handle, Lid (new Avocado)		Appelez-nous	-
7	379884		Handle, Lid (white)		Appelez-nous	-
7	379886		Handle, Lid (coffee)		Appelez-nous	-
8	358225		Screw, 8-18		Appelez-nous	-
9	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 6.65
10	345059		Sleeve, Anchor (2)		Appelez-nous	-
13	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 24.71
15	91605		Bumper, Lid Hinge		Appelez-nous	-
16	DE81-05611A		Spring, Lid (l.h.)   (Replaces: 92398)				$ 150.30
17	91099		Hinge, Lid (l.h.)		Appelez-nous	-
18	WP21097		Pad, Hinge (2)   (Replaces: 21097)				$ 7.02
19	WP21258		Bearing, Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
20	WPW10119828		Screw, Hinge Mounting   (Replaces: 18724)			Immediately	$ 6.47
21	379966		Lid (coffee)		Appelez-nous	-
21	379968		Lid (golden Harvest)		Appelez-nous	-
21	379967		Lid (new Avocado)		Appelez-nous	-
21	379964		Lid (white)		Appelez-nous	-
21	379965		Lid (almond)		Appelez-nous	-
22	380284		Top (almond)		Appelez-nous	-
22	380283		Top (white)		Appelez-nous	-
22	380287		Top (golden Harvest)		Appelez-nous	-
22	380286		Top (new Avocado)		Appelez-nous	-
22	380285		Top (coffee)		Appelez-nous	-
26	356552		Nut, Push-in (2)		Appelez-nous	-
27	352821		Bezel, Dispenser		Appelez-nous	-
28	352827		Tray, Dispenser		Appelez-nous	-
29	368578		Switch, Water Level		Appelez-nous	-
31	370145		Switch, Water Temperature (alternate)		Appelez-nous	-
31	370146		Switch, Water Temperature (alternate)		Appelez-nous	-
32	357301		Bracket, Control		Appelez-nous	-
40	380245		Timer Assembly (60 Hz.) (c.c.a.)		Appelez-nous	-
40	380126		Timer Assembly (60 Hz.) (mallory)		Appelez-nous	-
41	362681		Timer Motor, 60 Hz. (use W/c.c.a. Timer)		Appelez-nous	-
41	365941		Motor, Timer (60 Hz.) (use W/mallory Timer)		Appelez-nous	-
43	367676		Knob Assembly, Water Level		Appelez-nous	-
45	WP356418		Screw, 10-32 X 5/16   (Replaces: 96435)				$ 7.13
47	W10876590		Block, Disconnect (black)   (Replaces: 352089)				$ 11.48
49	352088		Terminal, Female				$ 5.83
54	380540		Panel, Control		Appelez-nous	-
57	359379		Dial, Timer		Appelez-nous	-
58	356500		Knob, Timer		Appelez-nous	-
61	368769		Knob Assembly, Water Temperature		Appelez-nous	-
62	599530307		Clip   (Replaces: 90015)		Appelez-nous	-
67	98084		Clip, ``u``		Appelez-nous	-
70	WP3351614		Screw, 10 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
72	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
73	W11693756		Screw, 8-18 X 5/16   (Replaces: 357670)			Immediately	$ 12.65
75	94612		Cap, Terminal (console Harness)		Appelez-nous	-
76	94611		Plug, Terminal (cabinet Harness)		Appelez-nous	-
78	94613		Terminal, (male)		Appelez-nous	-
79	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
81	357535		Wire, Ground		Appelez-nous	-
82	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
83	WP98997		Clip, Harness   (Replaces: 98997)				$ 9.98
85	WP359231		Shield, Lid Switch   (Replaces: 354289)				$ 7.58
86	354975		Screw & Washer		Appelez-nous	-
87	370959		Switch Actuator Assembly				$ 33.01
89	00-6163		Switch, Lid (alternate)   (Replaces: 364090)				$ 22.92
89	W10820036		Switch, Lid (alternate)   (Replaces: 367034)			Immediately	$ 27.45
89	W10820036		Switch, Lid (alternate)   (Replaces: 364091)			Immediately	$ 27.45
90	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
92	WP90016		Clip, Harness   (Replaces: 90016)				$ 10.19
95	357633		Strike, Lid Switch		Appelez-nous	-
96	354764		Screw & Washer		Appelez-nous	-
97	261886		Spray 13 Oz. (coffee)		Appelez-nous	-
97	261890		Spray (13 Oz.) (golden Harvest)		Appelez-nous	-
97	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
97	357645		Rack, Literature		Appelez-nous	-
97	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
97	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
97	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
97	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
97	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
97	261888		Spray (13 Oz.) (new Avocado)		Appelez-nous	-
97	381194		List, Repair Parts		Appelez-nous	-
97	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
97	350941		Spray (13 Oz.) (leveler (thinner))		Appelez-nous	-
97	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
97	978883		(1 Qt.) (almond (uncut))		Appelez-nous	-
97	261887		(1 Qt.) (coffee (uncut))		Appelez-nous	-
97	261889		(1 Qt.) (new Avocado (uncut))		Appelez-nous	-
97	261891		(1 Qt.) (golden Harvest (uncut))		Appelez-nous	-
97	799351		(1 Qt.) (thinner (1 Gal.))		Appelez-nous	-
97	359340		(1 Qt.) (harness, Console)		Appelez-nous	-
97	358116		(1 Qt.) (harness, Base)		Appelez-nous	-
97	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
97	375962		Bag, Miscellaneous Parts (non-suds)		Appelez-nous	-
97	380464		Instructions, Operating		Appelez-nous	-
97	372846		Instructions, Installation		Appelez-nous	-
97	358770		Guide, Laundry		Appelez-nous	-
97	382240		Label, Energy Guide		Appelez-nous	-
	299885		Wire, Splicing 240 Volt		Appelez-nous	-
