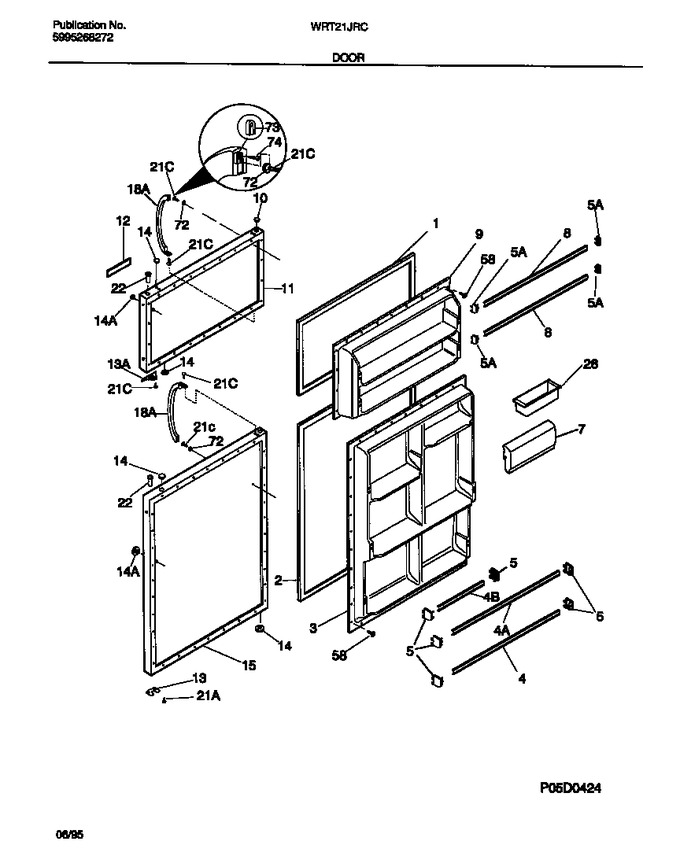

02 - Door
03 - Cabinet
04 - Shelves/controls
05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608903 | Gasket-frzr Door, Almond, Magnetic |
|
- | |||||
| 2 | 215732403 | Gasket-refr Door, Almond, Magnetic |
|
- | |||||
| 3 | 215393201 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 218027069 | Rack-door, 26.02`` X 1.62`` |
|
- | |||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 7 | 215058112 | Door-dairy, 12.96`` Wide |
|
- | |||||
| 8 | 218027067 | Rack-door, 25.00`` X 1.62`` |
|
- | |||||
| 9 | 215530301 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303917609 | Panel-frzr Door, Almond, W/insulation |
|
- | |||||
| 12 | 218409402 | Frame-nameplate, Almond |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr Section |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303917624 | Panel-refr Door, Almond, W/insul & Brace |
|
- | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 72 | 218397000 | Button-handle Mtg, Dovetail |
|
$ 16.74 | |||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| *37880 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 13A | 218249002 | Door Stop, Almond, Frzr |
|
$ 47.88 | |||||
| 14A | 215352211 | Plug-button,almond ,refr Door Front , |
|
- | |||||
| 18A | 218428102 | Handle-door, Almond, W/block & Screw |
|
- | |||||
| 21A | 218251900 | Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed |
|
$ 10.55 | |||||
| 21C | 218252201 | Screw, No. 8 Truss Head, 10-32 X 1/2 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 4A | 218027068 | Rack-door, 25.44`` X 1.62`` |
|
- | |||||
| 4B | 218027070 | Rack-door, 12.21`` X 1.62`` |
|
- | |||||
| 5A | 215473602 | Support-door Rack, Rh/lh (Replaces: 215473601) |
|
Immediately | $ 11.58 | ||||
| NI | 215518000 | Magnet-nameplate (not Illustrated) |
|
- | |||||
| NI | 215220339 | Label-nameplate, Almond (not Illustrated) |
|
- |
