02 - Tub And Basket


03 - Drive , Lit/optional


04 - Top And Console


05 - Cabinet


06 - Water System , Pump


07 - Gearcase


08 - Basket Drive And Brake

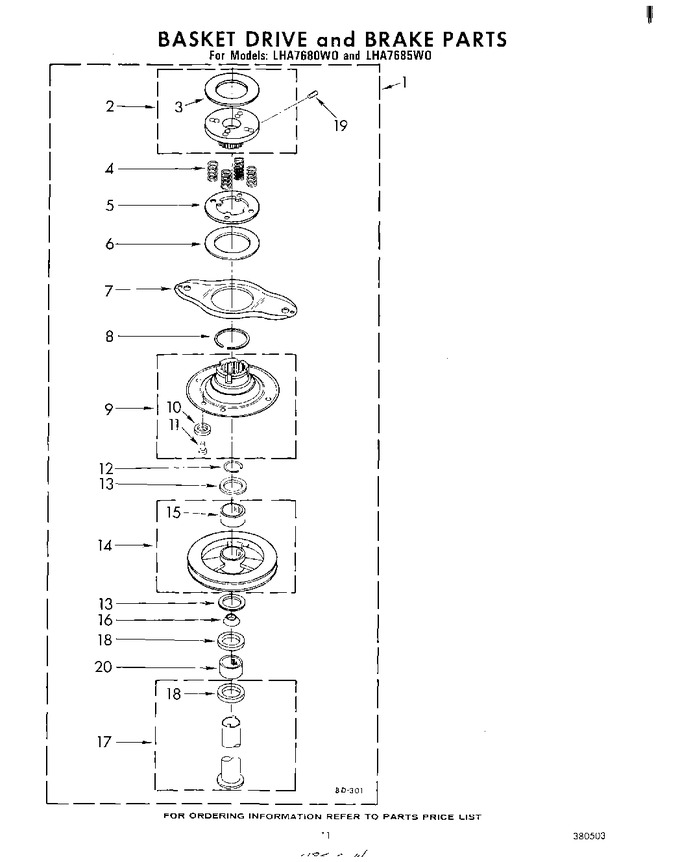

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	357970		Basket Drive & Brake		Appelez-nous	-
2	350522		Drum, Brake (upper)		Appelez-nous	-
3	354550		Lining, Basket Brake (upper)		Appelez-nous	-
4	354275		Spring, Basket Drive (green) (4)		Appelez-nous	-
5	97664		Drum, Brake (lower)		Appelez-nous	-
6	354244		Lining, Basket Brake (lower)				$ 3.47
7	92903		Yoke, Brake		Appelez-nous	-
8	16049		Ring, Snap		Appelez-nous	-
9	357155		Plate & Lining, Basket Drive		Appelez-nous	-
10	354243		Lining, Basket Drive (set Of 3)		Appelez-nous	-
11	98281		Eyelet (3)		Appelez-nous	-
12	W11033823		Ring, Retaining   (Replaces: 90368)				$ 11.21
13	353320		Washer, Thrust (2)		Appelez-nous	-
14	364032		Pulley, Basket Drive		Appelez-nous	-
15	16033		Bearing, Drive Pulley				$ 798.52
16	WP91939		Seal. Oil   (Replaces: 91939)			Immediately	$ 6.47
17	285896		Drive Tube & Bearing, Basket   (Replaces: 357965)				$ 20.15
18	WP356427		Seal, Drive Tube   (Replaces: 356427)			Immediately	$ 6.47
19	356057		Set Screw, 5/16-18x 13/16				$ 1.49
20	356937		Spacer, Agitator Shaft		Appelez-nous	-
