SELECT A DIAGRAM

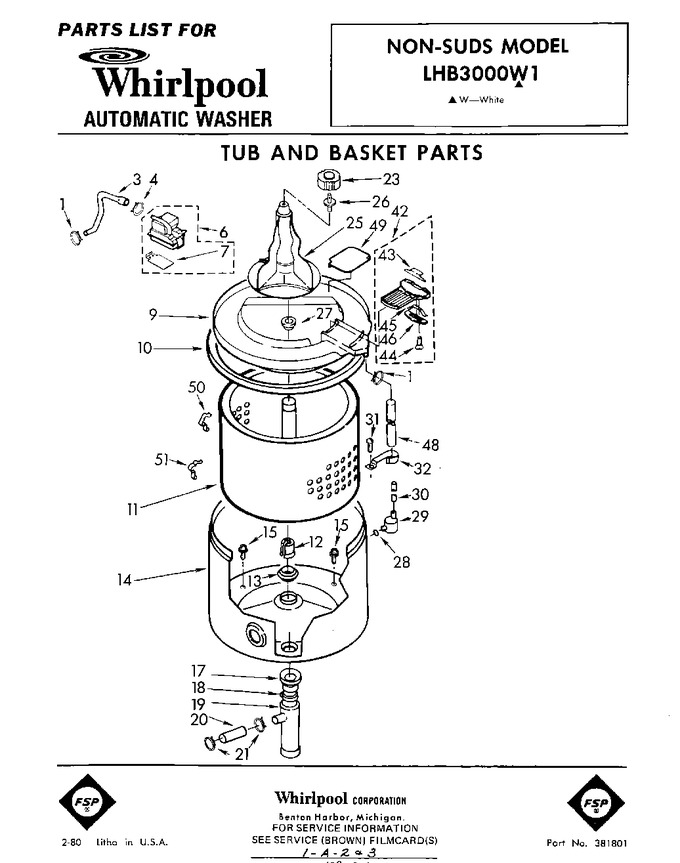

01 - Tub And Basket


02 - Drive


03 - Water Pump


04 - Top And Console


05 - Cabinet , Lit/optional


06 - Gearcase


07 - Basket Drive And Brake


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP596669		Clamp, Hose   (Replaces: 272846)			Immediately	$ 7.56
3	356555		Hose, Water Inlet		Appelez-nous	-
4	WP596669		Clamp, Hose   (Replaces: 272847)			Immediately	$ 7.56
6	366072		Inlet, Water		Appelez-nous	-
7	355584		Flapper		Appelez-nous	-
9	359313		Ring & Filter Tub (includes Illus. 42)		Appelez-nous	-
10	356585		Seal, Tub Ring		Appelez-nous	-
11	358837		Basket		Appelez-nous	-
12	96384		Block, Drive				$ 32.89
13	W10814296		Gasket, Centerpost   (Replaces: 96690)			Immediately	$ 8.26
14	360785		Tub		Appelez-nous	-
15	WP358237		Screw & Washer, Tub (4)   (Replaces: 370571)			Immediately	$ 7.97
17	93553		Hose, Tub Outlet		Appelez-nous	-
18	9421321		Clip, Hose		Appelez-nous	-
19	84091		Manifold		Appelez-nous	-
20	DE81-06162A		Hose   (Replaces: 92231)				$ 78.75
21	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
23	358431		Cap, Agitator Cap		Appelez-nous	-
25	357200		Agitator & Insert		Appelez-nous	-
26	358440		Stud & Seal, Agitator		Appelez-nous	-
27	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 8.00
28	351830		Seal				$ 5.84
29	360804		Air Dome Assembly		Appelez-nous	-
30	WP353244		Hose, Pressure Switch   (Replaces: 353574)			Immediately	$ 53.94
31	WP273556		Screw, 10-16 X 5/8   (Replaces: 357640)			Immediately	$ 7.04
32	358339		Bracket, Hose		Appelez-nous	-
42	359296		Filter		Appelez-nous	-
43	357249		Latch		Appelez-nous	-
44	176360		Screw		Appelez-nous	-
45	94403		Spring		Appelez-nous	-
46	357250		Retainer, Filter		Appelez-nous	-
48	357612		Hose, Pump To Filter		Appelez-nous	-
49	355852		Plate, Snubber		Appelez-nous	-
50	356701		Clip, Tub Ring (2)		Appelez-nous	-
51	356700		Clip, Tub Ring (1)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
