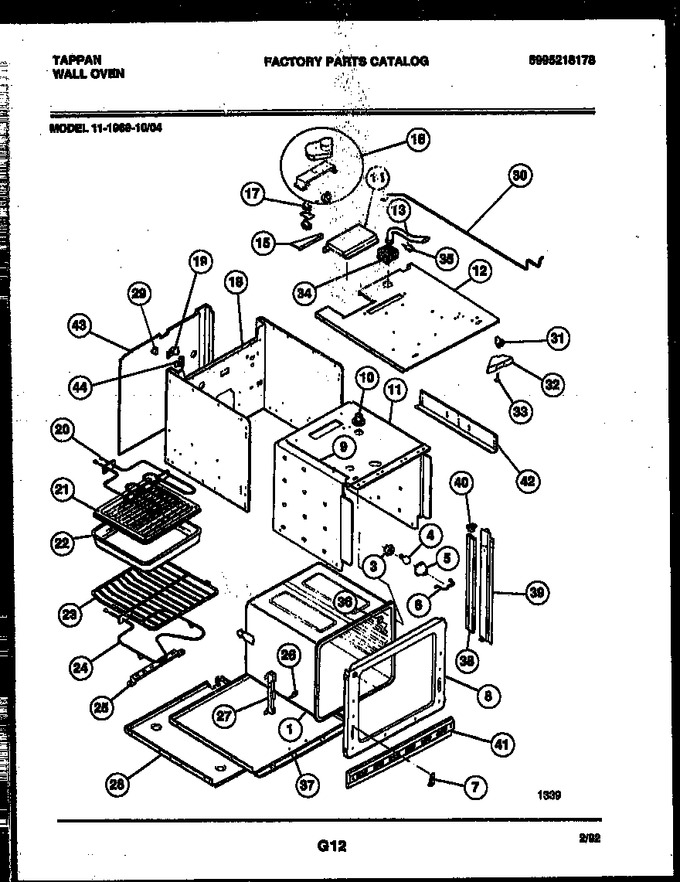

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Door Parts
04 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202451 | Liner-oven |
|
- | |||||
| 3 | 316116400 | Receptacle (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 4 | 40A15 | Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 5 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 6 | 3204483 | Retainer-lens |
|
- | |||||
| 7 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 8 | 3202449 | Frame-front |
|
- | |||||
| 9 | 3202077 | Rod-switch |
|
- | |||||
| 10 | 3205683 | Vent - Tube Assembly |
|
- | |||||
| 11 | 3202445 | Shield-wool |
|
- | |||||
| 12 | 3203747 | Wrapper-top |
|
- | |||||
| 13 | 3016301 | Duct - Vent Tube |
|
- | |||||
| 14 | 3016296 | Cover-motor |
|
- | |||||
| 15 | 3016276 | Bracket-motor Mounting |
|
- | |||||
| 16 | 5303016242 | Motor-latch Assembly |
|
- | |||||
| 17 | 3202430 | Switch, Lock (2) |
|
- | |||||
| 18 | 3202448 | Wrapper |
|
- | |||||
| 19 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 20 | 5303016247 | Element, Broil |
|
$ 223.97 | |||||
| 21 | 5303017712 | Insert-broiler Pan |
|
- | |||||
| 22 | 5303016973 | Pan-broiler |
|
- | |||||
| 23 | 3202442 | Rack-regular |
|
- | |||||
| 24 | 318255101 | Element, Bake (Replaces: 3202440) |
|
$ 185.70 | |||||
| 25 | 3016248 | Support, Broil Element |
|
- | |||||
| 26 | 3201632 | Spacer-oven |
|
- | |||||
| 27 | 3201631 | Hinge Assembly (2) |
|
$ 58.22 | |||||
| 28 | 3202447 | Wrapper-base |
|
- | |||||
| 29 | 5303275924 | Switch |
|
$ 92.03 | |||||
| 30 | 3016241 | Rod |
|
- | |||||
| 31 | 3051648 | Latch |
|
- | |||||
| 32 | 3019069 | Housing-latch |
|
- | |||||
| 33 | 08012004 | Axle-latch |
|
- | |||||
| 34 | 3016302 | Insulation - Vent |
|
- | |||||
| 35 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| 36 | 3202082 | Cover Seam |
|
- | |||||
| 37 | 3202446 | Shield-insulation |
|
- | |||||
| 38 | 3016279 | Trim, Inner, Rh |
|
- | |||||
| 39 | 5303271105 | Trim-side Outer (2) |
|
- | |||||
| 40 | 5303271107 | Trim-cap Lh |
|
- | |||||
| 41 | 3202237 | Trim-base |
|
- | |||||
| 42 | 3016278 | Support-height Adjustment (2) |
|
- | |||||
| 43 | 3202444 | Cover-wire |
|
- | |||||
| 44 | 3202384 | Bracket - Switch Mtg |
|
- | |||||
| *66664 | 5303271040 | Insulation-wrap |
|
- | |||||
| *66664 | 19100180235 | Wiring Diagram (not For Purchase) |
|
- | |||||
| *66664 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| *66664 | 3016274 | Insulation, Back |
|
- | |||||
| 23A | 3202443 | Rack-offset |
|
- | |||||
| 38A | 3016280 | Trim, Inner, Lh |
|
- | |||||
| 40A | 5303271106 | Trim-cap Rh |
|
- |
