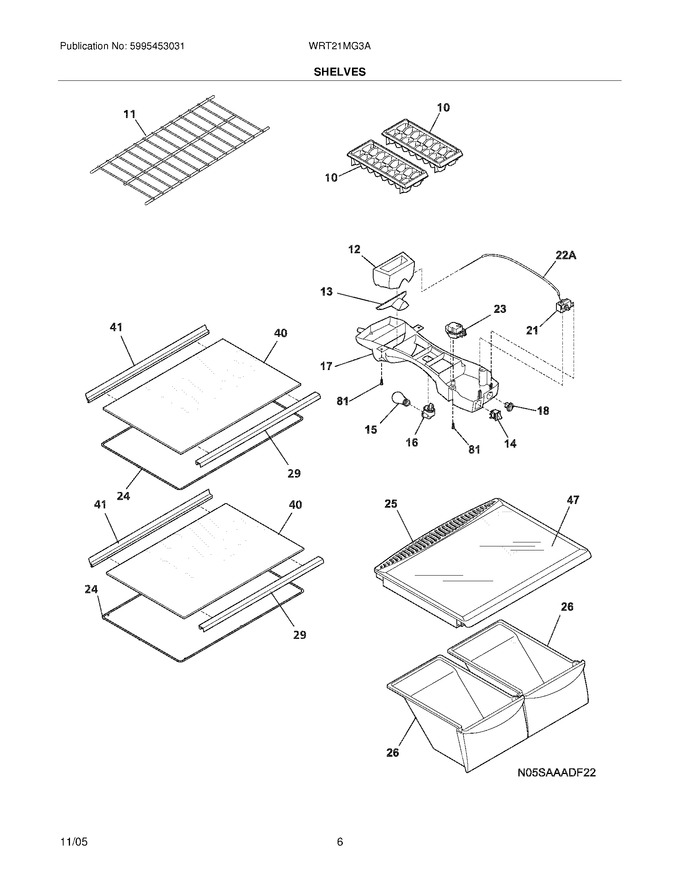

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray,ice Cube ,plastic			Immediately	$ 6.07
11	240358006		Shelf,freezer ,full-width ,wire				$ 45.41
12	240545901		Diffuser-air,top				$ 70.16
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
14	241554901		Switch-light/lamp				$ 70.88
15	316538904		Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature   (Replaces: 240436702)			Immediately	$ 20.48
16	241559801		Socket-light				$ 72.68
17	240368105		Control Box   (Replaces: 240368101)			Immediately	$ 130.44
18	240360801		Knob-temp Control				$ 43.95
24	240372407		Frame-shelf,sliding ,full Width				$ 151.68
25	240364716		Cover-crisper Pan				$ 198.45
26	240343803		Pan-crisper,(2)   (Replaces: 240343801)			Immediately	$ 171.91
29	240357704		Trim-shelf,front			Immediately	$ 66.25
40	240350621		Glass-shelf,23.78 X 18.02 ,full Shelf				$ 161.60
41	240561502		Trim-shelf,rear			Immediately	$ 71.59
47	240350609		Insert-pan Cover,glass			Immediately	$ 162.30
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces: 240468201)				$ 9.10
F21	241537103		Control-temperature   (Replaces: 5304445058)			Immediately	$ 72.31
F23	215846602		Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min   (Replaces: 215846606)			Immediately	$ 28.20
NI	5304455649		Screw-timer Mtg,pan Hd ,6-20 X 0.438 ,(2)   (Replaces: 5303001259)				$ 17.01
NI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
NI	5303299664		Spacer-shelf				$ 24.10
