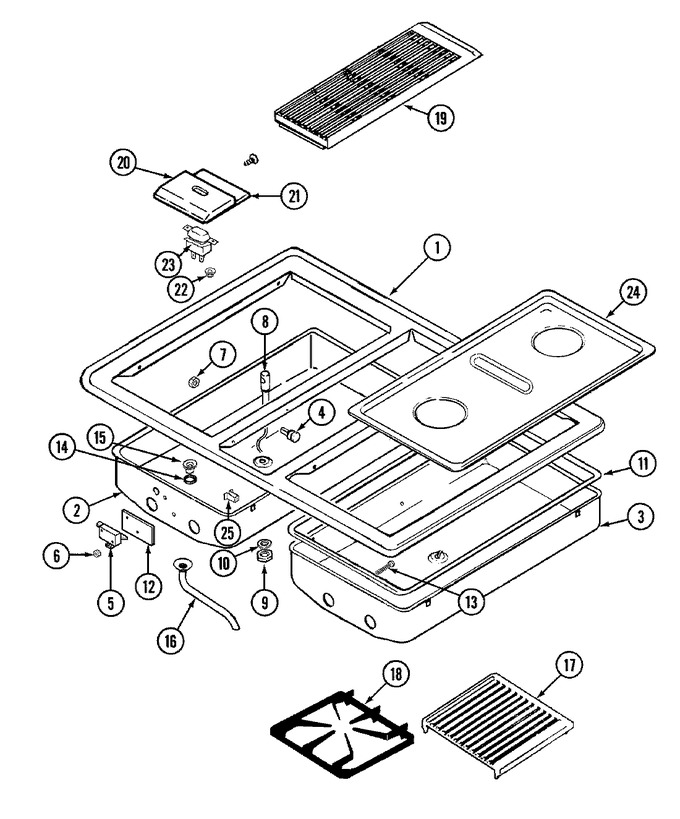

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	712600		Top, Stainless Steel	1	Appelez-nous	-
2	Y704924		Pan, Grill	1	Appelez-nous	-
3	704925		Pan, Grill (rt)	1	Appelez-nous	-
4	704536		Pin, Locator	1	Appelez-nous	-
5	7403P620-60		Switch, Micro   (Replaces: Y704533)	1			$ 141.22
6	Y704522		Nut	1	Appelez-nous	-
7	Y052721		Nut   (Replaces: Y704553)	1			$ 21.38
8	WP71002179		Igniter, Spark   (Replaces: Y704931)	1			$ 181.49
9	Y703856		Nut, Jam	1			$ 5.53
10	704941		Clip, Loop	1	Appelez-nous	-
10	Y702825		Plug, Rubber	1	Appelez-nous	-
10	704568		Lockwasher	1			$ 13.02
11	Y704979		Seal, Pan	1	Appelez-nous	-
12	Y704534		Insulator, Switch	1	Appelez-nous	-
13	715617		Washer (teflon)	1	Appelez-nous	-
13	DE81-04441A		Screw   (Replaces: 702380)	1			$ 329.62
14	702747		Washer, Teflon	1	Appelez-nous	-
15	702748		Nut, Drain Tube	1	Appelez-nous	-
16	Y702463		Tube, Drain (left)	1	Appelez-nous	-
17	Y04100054		Grate, Grill	1	Appelez-nous	-
18	Y04100335		Grate, Burner	1			$ 78.19
19	04100164		Grill, Air (chr)	1	Appelez-nous	-
19	04100767		Grill,air (chrome)	6	Appelez-nous	-
19	71001451		Grill, Air (wht)	10	Appelez-nous	-
20	Y04100548		Escutcheon (wht)	6	Appelez-nous	-
20	71001452		Escutcheon (wht)	10	Appelez-nous	-
20	Y704477		Escutcheon (wht)	1	Appelez-nous	-
21	Y704233		Bracket, Filler	1	Appelez-nous	-
22	Y04100035		Nut, Push	1	Appelez-nous	-
23	704478		Switch, Fan (gry)	1	Appelez-nous	-
24	Y704510		Pan, Aeration (wht)	1	Appelez-nous	-
25	Y700503		Clip, Retainer	1	Appelez-nous	-
