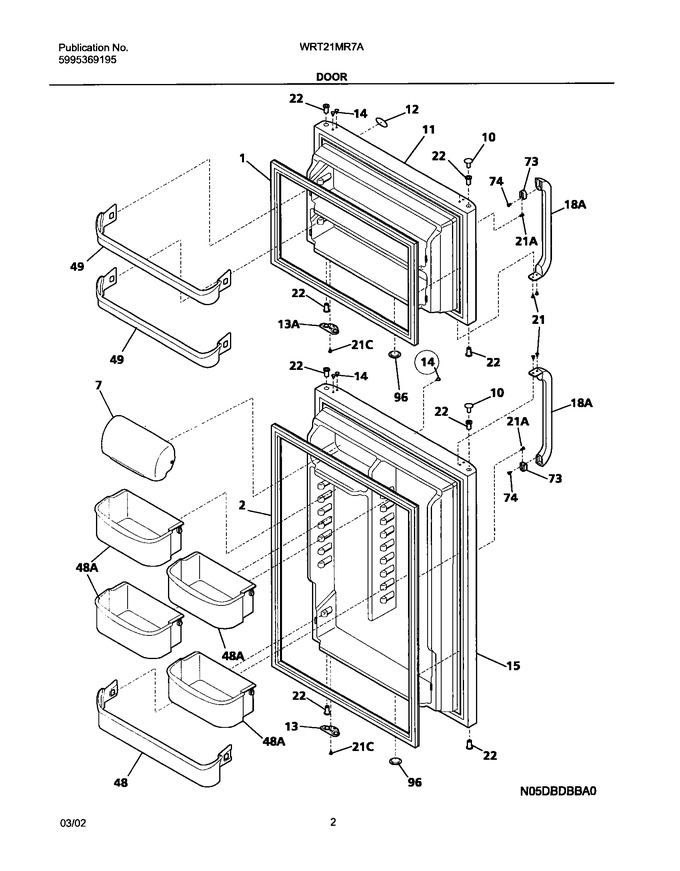

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240338310		Door-dairy,water Blue		Appelez-nous	-
10	240381303		Plug-button,gray ,hinge Brg Hole ,(2)   (Replaces: 240381305)				$ 69.77
11	240450327		Door-frzr,stainless Steel		Appelez-nous	-
12	240415702		Nameplate				$ 67.04
13	240312422		Door Stop,black ,ref   (Replaces: 240312405)				$ 15.17
14	240494005		Plug-button,gray		Appelez-nous	-
15	240450433		Door-refr,stainless Steel		Appelez-nous	-
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500   (Replaces: 240383401)			Immediately	$ 19.23
22	5304507147		Bearing-hinge,black ,(8)   (Replaces: 240311202)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240495804		Bin-door,pseudo ,frzr   (Replaces: 240495801)			Immediately	$ 43.29
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
96	240345506		Plug,door Foam Hole ,black				$ 51.87
13A	240312415		Door Stop,black ,frzr   (Replaces: 240312406)				$ 21.27
18A	218428107		Handle-door, Black, W/block & Screw		Appelez-nous	-
18A	218428121		Handle-door,gray ,w/block & Screw				$ 57.41
21A	240521303		Screw,no.10-16 X 1/2   (Replaces: 240521301)			Immediately	$ 30.20
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
48A	240338207		Bin-door,gallon ,water Blue		Appelez-nous	-
F1	242193211		Gasket-frzr Door,black ,magnetic   (Replaces: 240514611)				$ 187.11
F2	241872512		Gasket-refr Door,black ,magnetic   (Replaces: 240514612)			Immediately	$ 165.39
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
