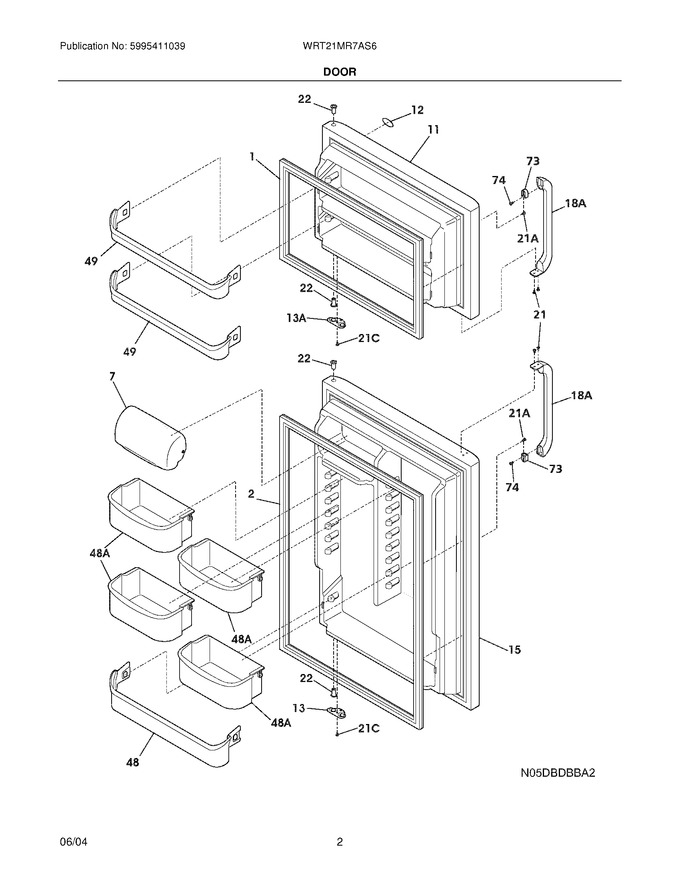

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 240338310 | Door-dairy,water Blue |
|
- | |||||
| 11 | 240450336 | Door,frzr ,stainless Steel ,rh |
|
- | |||||
| 12 | 240415702 | Nameplate |
|
$ 67.04 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 15.17 | |||||
| 15 | 240450444 | Door,refr ,stainless Steel ,rh |
|
- | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 (Replaces: 240383401) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 7.59 | ||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 52.37 | ||||
| 49 | 240495804 | Bin-door,pseudo ,frzr |
|
Immediately | $ 43.29 | ||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw,cr Pan Hd `10-16 X 0.500 (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| 13A | 240312415 | Door Stop,black ,frzr (Replaces: 240312406) |
|
$ 21.27 | |||||
| 18A | 218428121 | Handle-door,gray ,w/block & Screw |
|
$ 57.41 | |||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 (Replaces: 240521301) |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 48A | 240338207 | Bin-door,gallon ,water Blue |
|
- | |||||
| F1 | 242193211 | Gasket,seal ,black ,frzr Door ,magnetic (Replaces: 240514611) |
|
$ 187.11 | |||||
| F2 | 241872512 | Gasket,seal ,black ,refr Door ,magnetic (Replaces: 240514612) |
|
Immediately | $ 165.39 | ||||
| NI | 218490901 | Cleaner,stainless Steel |
|
$ 5.58 |
