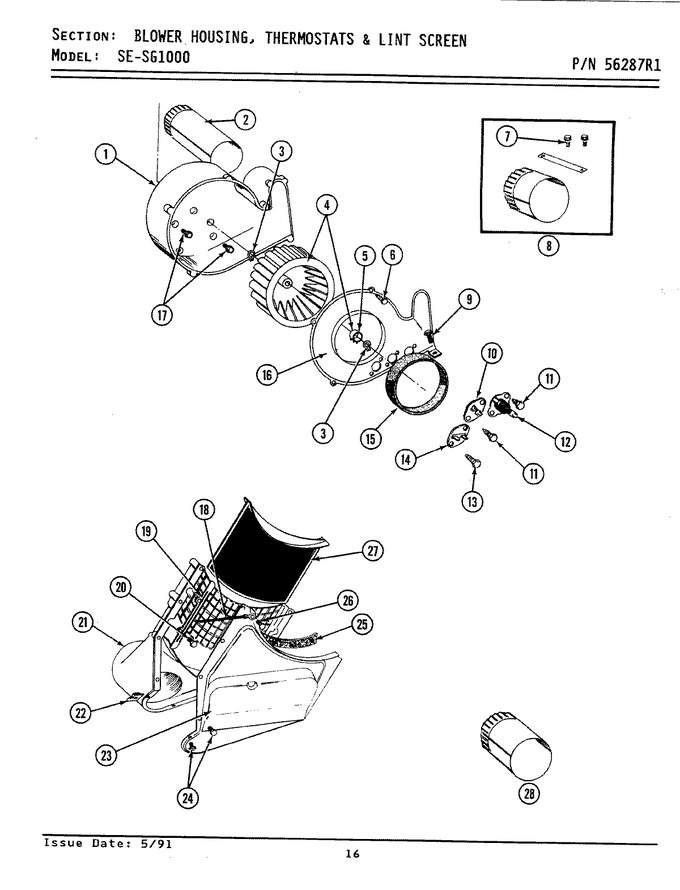

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
Y312893 |
|
Housing, Blower |
00 |
|
|
$ 55.67 |
|
|
| 2 |
314716 |
|
Retainer Clip |
00 |
Appelez-nous
|
- |
|
|
|
| 2 |
306064 |
|
Exhaust Duct |
00 |
Appelez-nous
|
- |
|
|
|
| 3 |
WP9703438 |
 |
Ring, Retaining (Replaces: 410233) |
00 |
|
Immediately |
$ 3.81 |
|
|
| 4 |
Y303836 |
 |
Blower Wheel Assembly & Clamp |
00 |
|
Immediately |
$ 32.35 |
|
|
| 5 |
WP312967 |
 |
Clamp, Blower Housing (Replaces: 312967) |
00 |
|
Immediately |
$ 10.68 |
|
|
| 6 |
WPW10116751 |
|
Screw (Replaces: Y312961) |
00 |
|
|
$ 6.74 |
|
|
| 7 |
Y310632 |
|
Screw |
00 |
Appelez-nous
|
- |
|
|
|
| 8 |
8544761A |
|
Duct W/bracket & Screws (Replaces: 306643) |
00 |
|
|
$ 22.81 |
|
|
| 9 |
Y313561 |
|
Screw----na |
00 |
|
|
$ 5.27 |
|
|
| 10 |
306056 |
|
Thermistor Temp Control |
00 |
|
|
$ 39.41 |
|
|
| 11 |
WP90767 |
 |
Screw (Replaces: 211294) |
00 |
|
Immediately |
$ 7.04 |
|
|
| 12 |
306060 |
|
Thermostat |
00 |
Appelez-nous
|
- |
|
|
|
| 13 |
WP90767 |
|
Screw (Replaces: 314848) |
00 |
|
Immediately |
$ 7.04 |
|
|
| 14 |
WP306604 |
 |
Cut-off, Thermal (Replaces: 306604) |
08 |
|
Immediately |
$ 37.77 |
|
|
| 15 |
WPY312901 |
 |
Seal, Blower (Replaces: Y312901) |
00 |
|
|
$ 60.70 |
|
|
| 16 |
Y313770 |
|
Cover For Blower Housing |
00 |
Appelez-nous
|
- |
|
|
|
| 17 |
Y310632 |
|
Screw |
00 |
Appelez-nous
|
- |
|
|
|
| 18 |
901220 |
|
Wire, Ground |
00 |
Appelez-nous
|
- |
|
|
|
| 19 |
Y313795 |
|
Guide For Lint Screen |
00 |
Appelez-nous
|
- |
|
|
|
| 20 |
WPW10116751 |
|
Screw (Replaces: Y312961) |
00 |
|
|
$ 6.74 |
|
|
| 21 |
306658 |
|
Outlet Duct & Grid Assy |
00 |
Appelez-nous
|
- |
|
|
|
| 21 |
314801 |
|
Outlet Duct & Grid |
00 |
Appelez-nous
|
- |
|
|
|
| 22 |
488660 |
|
Fastener On Outlet Duct (Replaces: 315274) |
05 |
Appelez-nous
|
- |
|
|
|
| 22 |
214894 |
|
Fastener, End Cap |
00 |
Appelez-nous
|
- |
|
|
|
| 23 |
314485 |
|
Outlet Duct And Grid |
00 |
Appelez-nous
|
- |
|
|
|
| 24 |
WPW10116751 |
|
Screw (Replaces: Y312961) |
00 |
|
|
$ 6.74 |
|
|
| 25 |
Y313796 |
|
Lint Seal |
00 |
|
|
$ 5.85 |
|
|
| 26 |
310557 |
|
Washer |
00 |
Appelez-nous
|
- |
|
|
|
| 26 |
WPW10116751 |
|
Screw (Replaces: Y312961) |
00 |
|
|
$ 6.74 |
|
|
| 27 |
WP33001003 |
 |
Lint Screen (Replaces: Y306666) |
00 |
|
Immediately |
$ 43.47 |
|
|
| 28 |
306637 |
|
Exhaust Duct Assembly |
06 |
Appelez-nous
|
- |
|
|
|
