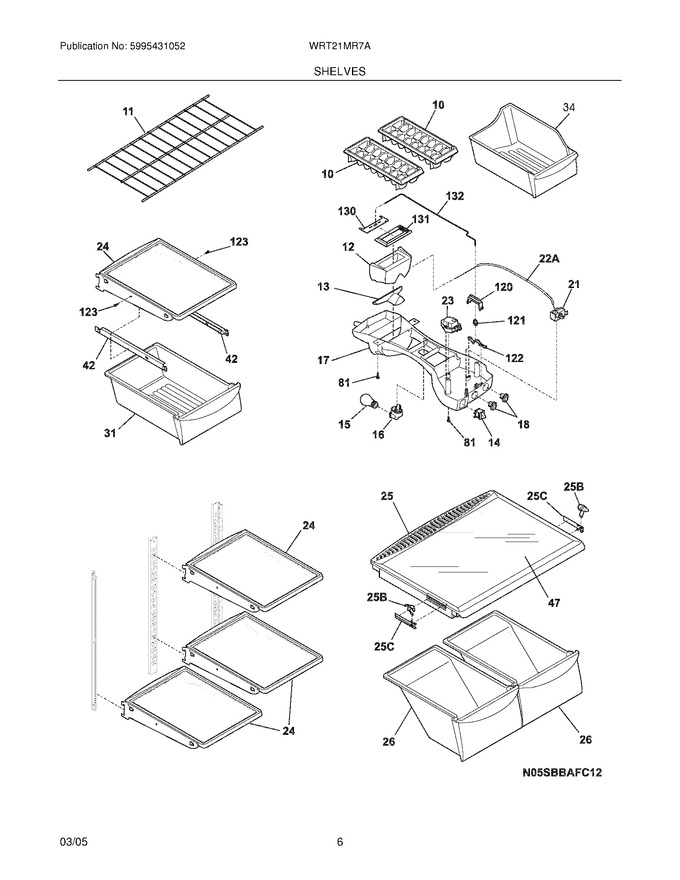

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 215667501 | Tray,ice Cube ,plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 240358003 | Shelf,freezer ,full-width ,wire |
|
- | |||||
| 12 | 240417802 | Diffuser-air,top |
|
$ 68.57 | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 41.81 | ||||
| 15 | 316538904 | Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature (Replaces: 240436702) |
|
Immediately | $ 20.48 | ||||
| 16 | 241559801 | Socket-light |
|
$ 72.68 | |||||
| 17 | 240407301 | Control Box |
|
- | |||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 240355238 | Shelf,fixed ,spill Safe |
|
- | |||||
| 25 | 240364751 | Cover-crisper Pan |
|
- | |||||
| 26 | 240343805 | Pan-crisper,water Blue ,(2) |
|
- | |||||
| 31 | 240530908 | Pan-meat,water Blue |
|
- | |||||
| 34 | 240385201 | Container,ice Bin |
|
$ 97.83 | |||||
| 42 | 240365401 | Track,meat Pan Hanger ,lh |
|
Immediately | $ 51.26 | ||||
| 42 | 240356501 | Track,meat Pan Hanger ,rh |
|
Immediately | $ 56.70 | ||||
| 47 | 240443329 | Insert-pan Cover,glass |
|
- | |||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 120 | 240366401 | Guide-follower,cam Follower |
|
- | |||||
| 121 | 240366602 | Cam Follower |
|
$ 26.04 | |||||
| 122 | 240366501 | Cam-damper |
|
- | |||||
| 123 | 215005101 | Screw,hanger/rlr Mtg ,8-10 X 0.438 (Replaces: 215005100) |
|
$ 14.89 | |||||
| 130 | 218249806 | Seal,insulation ,foam ,damper |
|
$ 5.40 | |||||
| 130 | 240366101 | Damper-control Box |
|
$ 41.92 | |||||
| 131 | 240366201 | Retainer-damper,damper |
|
- | |||||
| 132 | 240366302 | Control Rod,damper |
|
$ 21.51 | |||||
| 22A | 240468202 | Tube,sensor Sleeve ,31 Inch ,plastic ,white (Replaces: 240468201) |
|
$ 9.10 | |||||
| 25B | 240361203 | Knob,humidity Cont. |
|
- | |||||
| 25C | 5304492617 | Damper,humidity Cont. (Replaces: 240361301) |
|
Immediately | $ 8.69 | ||||
| F14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| F21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 72.31 | ||||
| F23 | 215846602 | Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min (Replaces: 215846606) |
|
Immediately | $ 28.20 | ||||
| NI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 80.09 | ||||
| NI | 5304455649 | Screw-timer Mtg,pan Hd ,6-20 X 0.438 ,(2) (Replaces: 5303001259) |
|
$ 17.01 | |||||
| NI | 240466001 | Seal-air Diffuser |
|
$ 30.81 | |||||
| NI | 5303299664 | Spacer-shelf |
|
$ 24.10 |
