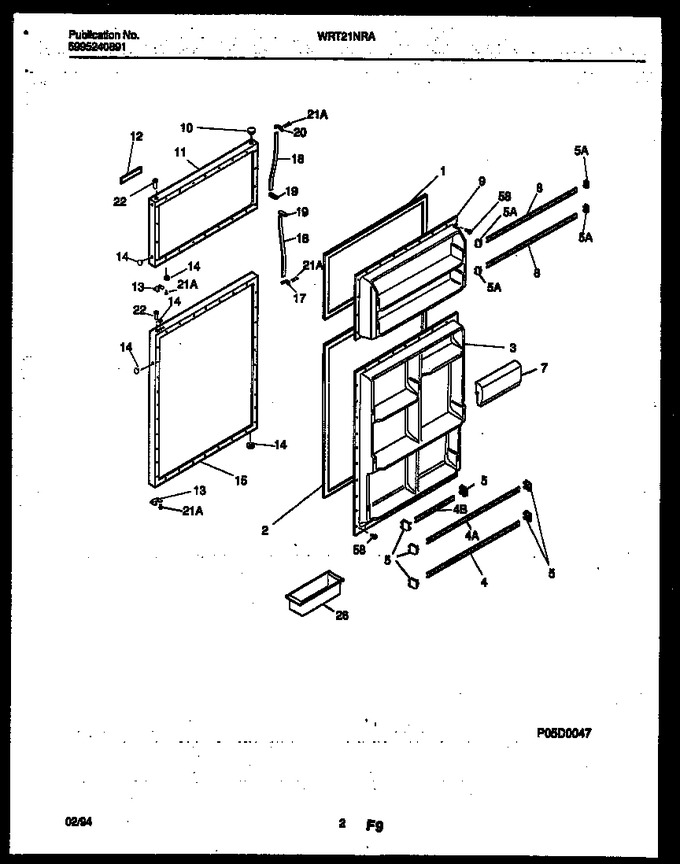

02 - Door Parts


03 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5318680314		Gasket-frzr Door, Magnetic, White				$ 113.57
2	5303018792		Gasket-refr Door, Magnetic, White		Appelez-nous	-
3	215393201		Panel-inner Door, Refr		Appelez-nous	-
4	215366039		Rack - Door		Appelez-nous	-
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	215058102		Door-dairy		Appelez-nous	-
8	215366036		Rack - Door		Appelez-nous	-
9	215530301		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303916887		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215490701		Nameplate Assy, White		Appelez-nous	-
13	5303212491		Door Stop, Refr		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303916866		Panel-refr Door, White, W/insul & Brace		Appelez-nous	-
17	215364800		Handle End				$ 73.92
18	5303015111		Handle-door		Appelez-nous	-
19	215365000		Handle End, (2)		Appelez-nous	-
20	215364900		Handle End				$ 108.52
22	5308012007		Bearing-hinge		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
58	5308002748		Screw		Appelez-nous	-
*84965	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	5308011745		Screw				$ 10.38
4A	215366038		Rack - Door		Appelez-nous	-
4B	215366040		Rack - Door		Appelez-nous	-
5A	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
NI	5308000255		Door Stop-frzr				$ 42.20
NI	5303279626		Insert-handle Grip, White (non-illustrated)		Appelez-nous	-
NI	5315340712		Tape-double Faced, Foam, 12`` Pc, Nameplate (non-illustrated)		Appelez-nous	-
