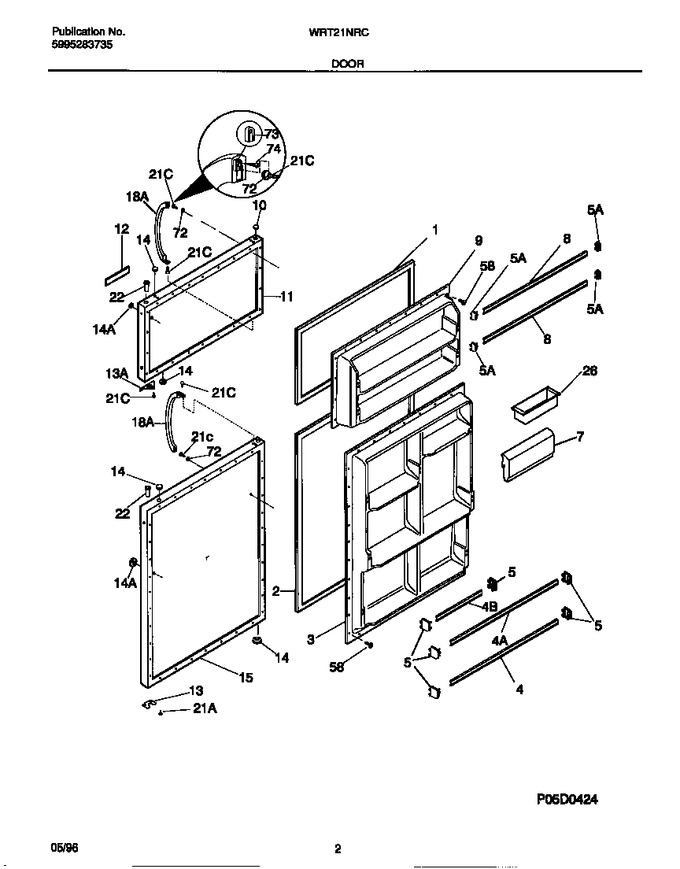

02 - Door
03 - Cabinet
04 - Shelves/controls
05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608913 | Gasket-frzr Door, White, Magnetic |
|
- | |||||
| 2 | 215732413 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 215393201 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 218027068 | Rack-door, 25.44`` X 1.62`` |
|
- | |||||
| 4 | 218027070 | Rack-door, 12.21`` X 1.62`` |
|
- | |||||
| 4 | 218027069 | Rack-door, 26.02`` X 1.62`` |
|
- | |||||
| 5 | 215473602 | Support-door Rack, Rh/lh (Replaces: 215473601) |
|
Immediately | $ 11.58 | ||||
| 5 | 215267701 | Support-door Rack,``2-liter`` ,rh/lh |
|
Immediately | $ 7.79 | ||||
| 8 | 218027067 | Rack-door, 25.00`` X 1.62`` |
|
- | |||||
| 9 | 215530301 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917810 | Panel-frzr Door, White, W/insulation |
|
- | |||||
| 12 | 218468100 | Magnet-nameplate (not Illustrated) |
|
- | |||||
| 12 | 218467401 | Frame-nameplate, White |
|
- | |||||
| 12 | 218468013 | Label-nameplate, White (not Illustrated) |
|
- | |||||
| 13 | 218249001 | Door Stop, White, Frzr Section |
|
$ 82.06 | |||||
| 13 | 5303212491 | Door Stop, Refr Section |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 14 | 240494001 | Plug-button,white ,refr Door Front , (Replaces: 215352201) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917812 | Panel-refr Door, White |
|
- | |||||
| 18 | 218428101 | Handle-door, White, W/block & Screw |
|
Immediately | $ 22.73 | ||||
| 21 | 218252201 | Screw, No. 8 Truss Head, 10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 21 | 218251900 | Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed |
|
$ 10.55 | |||||
| 22 | 218519300 | Bearing-hinge |
|
$ 14.60 | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 58 | 5303314236 | Screw, Truss/ph Head, 8-18ab X 0.500 |
|
- | |||||
| 72 | 218397000 | Button-handle Mtg, Dovetail |
|
$ 16.74 | |||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| *20000 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 7A | 215058112 | Door-dairy, 12.96`` Wide |
|
- | |||||
| NI | 5303001380 | Screw |
|
- |
