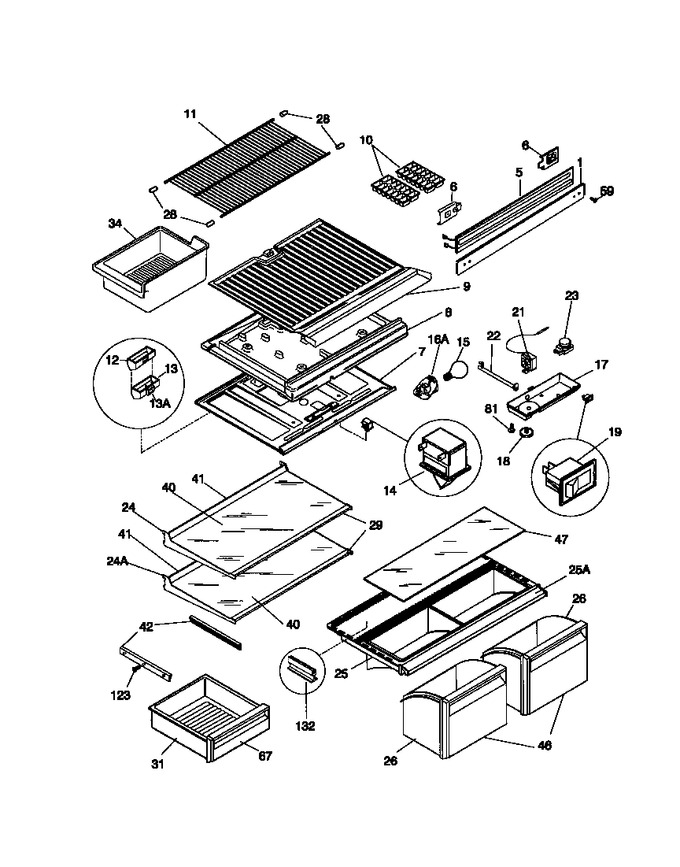

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218252504		Mullion, Almond		Appelez-nous	-
5	218271402		Heater-mullion		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
9	5303210641		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
18	5303307352		Knob, Temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
22	3018891		Housing-temp Sensor, Plastic		Appelez-nous	-
24	215919117		Frame-full Shelf, Cantilever		Appelez-nous	-
25	215363203		Cover-crisper Pan, Less Insert		Appelez-nous	-
26	215363301		Pan - Crisper, Tilt-out		Appelez-nous	-
28	3201150		Cap-protector				$ 4.57
29	215919459		Trim-glass Shelf, 26.80``, Front		Appelez-nous	-
31	215742602		Pan-meat				$ 174.40
34	5303212918		Container-ice				$ 104.66
40	218390547		Glass-shelf, 26.76`` X 14.57``		Appelez-nous	-
41	215919805		Trim-glass Shelf, 26.80``, Rear		Appelez-nous	-
46	215363410		Front-crisper Pan		Appelez-nous	-
47	218390554		Insert-pan Cover, Glass		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
67	5303309866		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
132	215426600		Support, Crspr Cover, Rear		Appelez-nous	-
11A	5303288243		Shelf-freezer, Fixed/flat, Full Width, Wire		Appelez-nous	-
12A	5308014667		Deflector-air, W/seal		Appelez-nous	-
17A	5303307349		Box, Control		Appelez-nous	-
21A	5303018894		Control-temperature		Appelez-nous	-
23A	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
42A	218971202		Hanger-pan/tray, Lh   (Replaces: 5303298718)				$ 60.96
7A	3019038		Top Panel-refr		Appelez-nous	-
8A	5303019039		Divider, Styrofoam		Appelez-nous	-
NI	3019040		Harness-wiring, Control/divider (not Illustrated)		Appelez-nous	-
NI	5303299975		Trim - Crisper Cover		Appelez-nous	-
NI	3205266		Protector, Edge (not Illustrated)				$ 80.09
NI	215919122		Frame-pan Mtg Shelf, Cantilever, Full Width, W/hanger Ta		Appelez-nous	-
NI	218971302		Hanger-pan/tray, Rh   (Replaces: 5303298719)				$ 73.71
NI	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
NI	218159700		Spacer, Frzr Shelf (not Illustrated)		Appelez-nous	-
NI	5303001449		Seal, Air Deflector (not Illustrated)				$ 2.12
NI	5303001260		Screw				$ 6.73
NI	5303200590		Extension, Air Deflector, With Insulation		Appelez-nous	-
NI	5303001380		Screw		Appelez-nous	-
NI	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
