SELECT A DIAGRAM

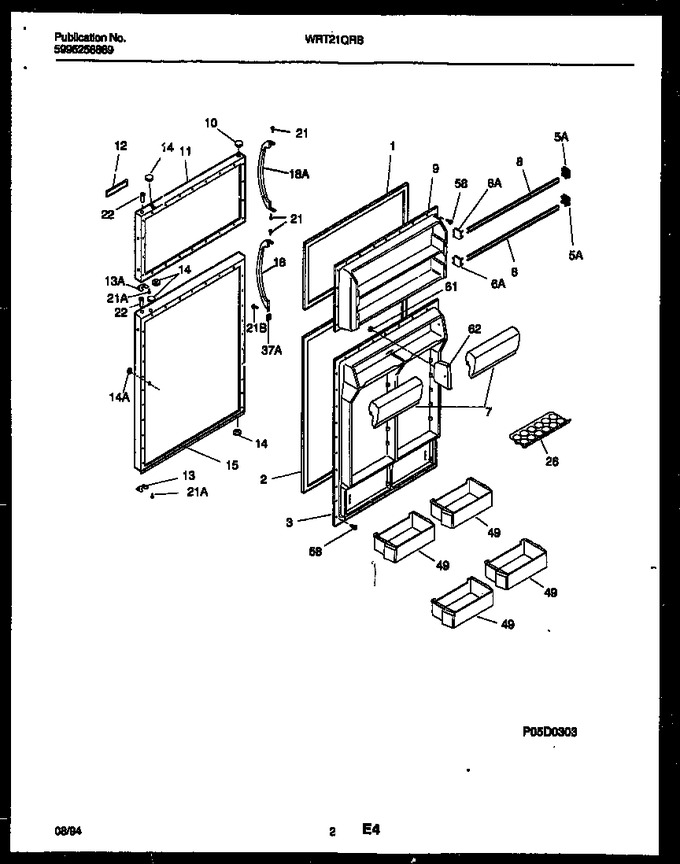

02 - Door Parts


03 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608913		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	215732413		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	5303275674		Panel-inner Door, Refr		Appelez-nous	-
7	5303284478		Door-dairy				$ 179.92
8	215806316		Rack-door, 26.28``				$ 82.35
9	5303206631		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917379		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215366301		Frame - Nameplate,white		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917402		Panel-refr Door, White, W/insul & Brace		Appelez-nous	-
18	215915504		Handle-door, 19.86``, White		Appelez-nous	-
21	5303272566		Screw-handle Mtg, Oval Head, 10-24(d) X 5/8, White, Cro		Appelez-nous	-
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
49	5303304711		Bin, Door, Gallon		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
61	5308017047		Nut, Self-threading, 1/8		Appelez-nous	-
62	5303275673		Divider-dairy Compt		Appelez-nous	-
13A	5308000255		Door Stop				$ 42.20
14A	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
18A	215915502		Handle-door, 19.51``, White		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
37A	215480205		Trim-handle, End Cap, White, Refr Door		Appelez-nous	-
5A	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
6A	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
NI	5303304712		Bin, Door, 2, Liter		Appelez-nous	-
NI	215894100		Cross Brace-door (non-illustrated)		Appelez-nous	-
NI	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (non-illustrated)		Appelez-nous	-
NI	215220302		Label-nameplate, Gray/white Ltrs (non-illustrated)		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
