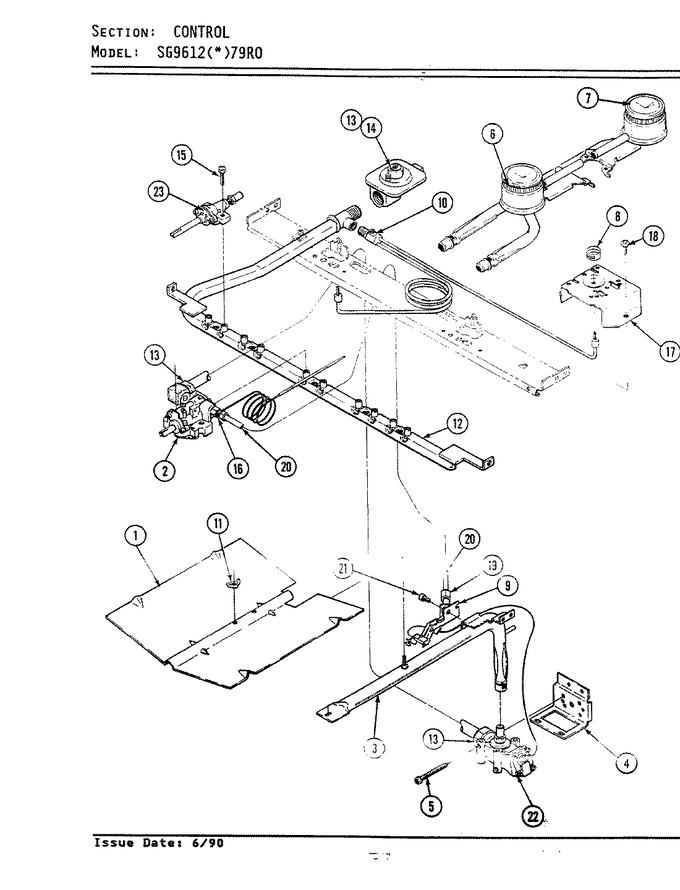

SELECT A DIAGRAM

01 - Body


02 - Control System


03 - Door/drawer


04 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F181-45		Baffle, Oven Burner	1	Appelez-nous	-
2	7101P043-60		Screw, Control Valve	1	Appelez-nous	-
2	7515P026-60		Thermostat	52	Appelez-nous	-
2	7515P015-60		Thermostat Oven	1	Appelez-nous	-
3	7505P101-60		Burner	1	Appelez-nous	-
4	3807F120-34		Support	1	Appelez-nous	-
5	7101P025-60		Screw	1	Appelez-nous	-
6	7505P169-60		Burner, Top Front	1	Appelez-nous	-
7	7505P168-60		Burner, Top Rear	1	Appelez-nous	-
8	7507P022-60		Shield, Top Brn Pilo	1	Appelez-nous	-
9	1566267		Pilot Assy.	1	Appelez-nous	-
10	7103P070-60		Nut, Top Pilot	1	Appelez-nous	-
10	7505P080-60		Pilot, Top Burner	1	Appelez-nous	-
11	7103P030-60		Nut, Wing	1			$ 6.37
12	7513P028-60		Pipe, Manifold	1	Appelez-nous	-
12	7513P102-60		Manifold Pipe	52	Appelez-nous	-
13	1555251		Nut, Loxit (3/8``)	1	Appelez-nous	-
14	7510P001-60		Regulator, Pressure	1	Appelez-nous	-
15	7101P296-60		Screw	52	Appelez-nous	-
15	7101P043-60		Screw, Control Valve	1	Appelez-nous	-
16	1555279		Nut, 1/4`` Loxit	1	Appelez-nous	-
17	3807F200-45		Support, Top Pilot	1	Appelez-nous	-
18	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
19	1555261K		Nut & Ferrule (3/16``)	1	Appelez-nous	-
20	3414F062-44		Tubing, 3/16`` X 54``----na	1	Appelez-nous	-
21	WP4159193		Screw   (Replaces: 7101P067-60)	1			$ 4.29
22	7501P062-60		Valve, Oven----na	1	Appelez-nous	-
23	7502P026-60		Valve	52	Appelez-nous	-
23	7502P108-60		Valve, Burner	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
