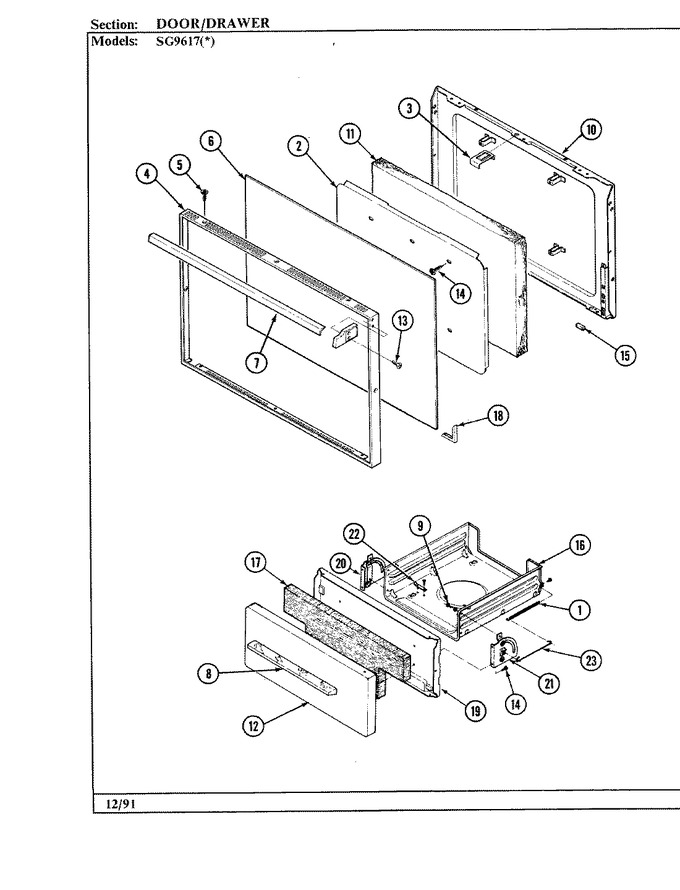

01 - Control Panel (sg9617x429r)
02 - Door/drawer (sg9617x429r)
03 - Door/drawer (skg9611x540r)
04 - Gas Controls
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7803P014-60 | Spring | 01 |
|
- | ||||
| 2 | 3601F026-51 | Baffle | 01 |
|
- | ||||
| 3 | 7112P034-60 | Clip, Door | 01 |
|
- | ||||
| 4 | 7706P245-60 | Frame, O Door | 01 |
|
- | ||||
| 5 | 7101P276-60 | Screw (blk) | 01 |
|
- | ||||
| 6 | 7902P275-60 | Glass, Door | 01 |
|
- | ||||
| 7 | 7701P048-60 | Handle, Storage Drawer | 01 |
|
- | ||||
| 8 | 7701P012-60 | Handle, Drawer (chr) | 01 |
|
- | ||||
| 8 | 74002481 | Screw, Handle (Replaces: 7101P283-60) | 01 |
|
$ 5.82 | ||||
| 9 | 7101P114-60 | Screw | 01 |
|
- | ||||
| 10 | 2402W155-19 | Lining, Oven Door | 01 |
|
- | ||||
| 11 | 7002P013-60 | Insulation | 01 |
|
- | ||||
| 12 | 2416F025-71 | Panel, Drawer (wht) | 01 |
|
- | ||||
| 13 | 7101P305-60 | Screw | 01 |
|
- | ||||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 15 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 16 | 7103P067-60 | Lock Nut, Catch | 01 |
|
- | ||||
| 16 | 7101P065-60 | Screw | 01 |
|
- | ||||
| 16 | 3407W009-19 | Broiler Drawer Assy. | 01 |
|
- | ||||
| 17 | 7002P002-60 | Insulation | 01 |
|
- | ||||
| 18 | 8010P045-60 | Spacer, Glass Corner | 01 |
|
- | ||||
| 19 | 2404F021-19 | Lining, Broiler Drawer | 01 |
|
- | ||||
| 19 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 01 |
|
Immediately | $ 6.85 | |||
| 20 | 3418A063-34 | Hinge, Broiler (lt) | 01 |
|
- | ||||
| 21 | 3418A062-34 | Hinge, Broiler (rt) | 01 |
|
- | ||||
| 22 | 8002P001-60 | Catch | 01 |
|
- | ||||
| 23 | 7807P001-60 | Link, Broiler | 01 |
|
- |
