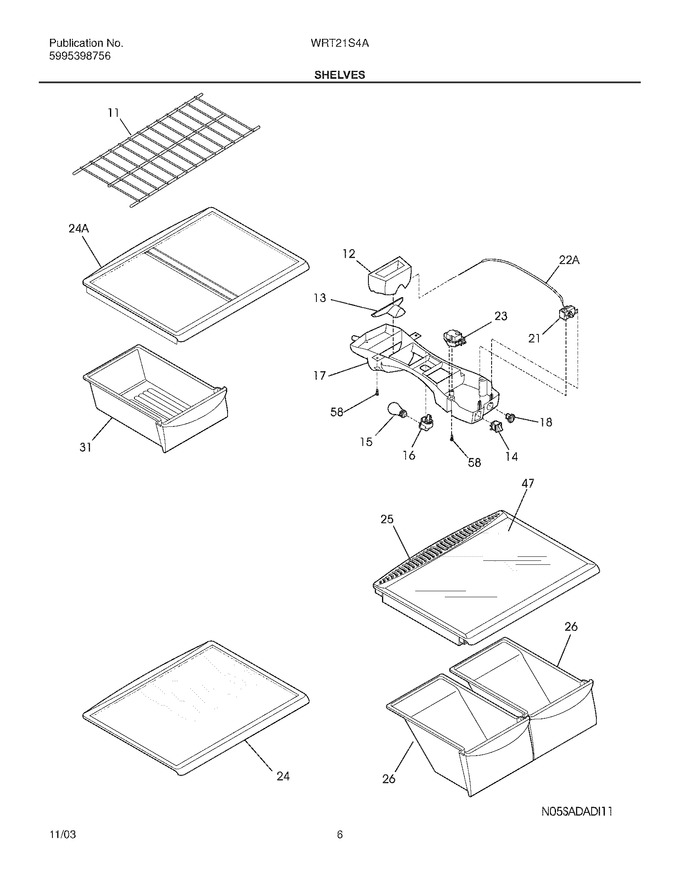

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 240358003 | Shelf,freezer ,full-width ,wire |
|
- | |||||
| 12 | 240545901 | Diffuser-air,top |
|
$ 70.16 | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 41.81 | ||||
| 15 | 316538904 | Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature (Replaces: 240436702) |
|
Immediately | $ 20.48 | ||||
| 16 | 241559801 | Socket-light/lamp (Replaces: 241500701) |
|
$ 72.68 | |||||
| 17 | 240368105 | Control Box (Replaces: 240368101) |
|
Immediately | $ 130.44 | ||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 240358928 | Shelf-``spill-safe``,sliding (Replaces: 240358909) |
|
Immediately | $ 174.36 | ||||
| 25 | 240364756 | Cover-crisper Pan |
|
- | |||||
| 26 | 240343803 | Pan-crisper,(2) |
|
Immediately | $ 171.91 | ||||
| 31 | 240530811 | Pan-meat,w/o Graphics ,clear (Replaces: 240530903) |
|
Immediately | $ 135.77 | ||||
| 47 | 240350609 | Insert-pan Cover,glass (Replaces: 240350654) |
|
Immediately | $ 162.30 | ||||
| 58 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 22A | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 60.96 | |||||
| 24A | 240358928 | Shelf-``spill-safe``,sliding ,meat Pan Track (Replaces: 240358910) |
|
Immediately | $ 174.36 | ||||
| F14 | 240505801 | Switch-light/lamp |
|
$ 66.63 | |||||
| F21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 72.31 | ||||
| F23 | 215846602 | Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min (Replaces: 215846606) |
|
Immediately | $ 28.20 | ||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| NI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 80.09 |
