SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


05 - Shelves And Supports


07 - System And Automatic Defrost Parts

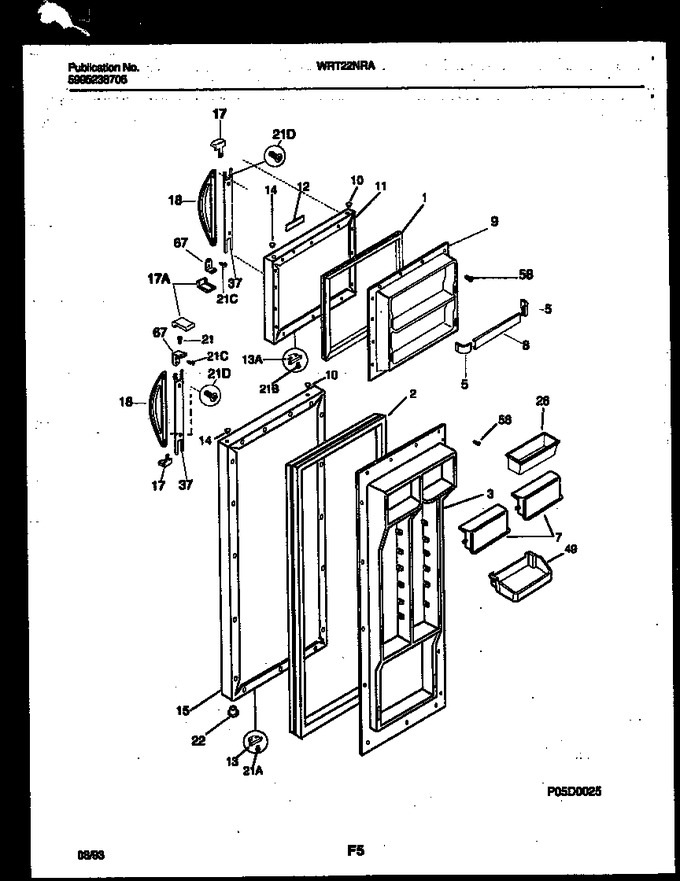

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303292374		Gasket-frzr Door, Magnetic, Almond		Appelez-nous	-
2	5303292370		Gasket-refr Door, Magnetic, Almond		Appelez-nous	-
3	215441101		Panel-inner Door, Refr		Appelez-nous	-
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	215058102		Door-dairy, (2)		Appelez-nous	-
8	215366009		Rack-door, Full-width, W/o End Caps, (2)		Appelez-nous	-
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303292414		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	215676811		Panel-frzr Door, Almond, W/foam Insulatn		Appelez-nous	-
12	215220211		Frame-nameplate, Almond		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	215352111		Plug-button, Almond, Handle Mtg		Appelez-nous	-
15	215677011		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
17	215422000		Handle End, Chrome		Appelez-nous	-
18	215339711		Handle-door, Almond		Appelez-nous	-
21	215201400		Screw-handle Mtg, Torx Flat Head, 8-18(ab) X 5/8		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215219801		Trim-handle, 13.82``, Black/silver		Appelez-nous	-
49	5303299396		Bin-utility, 2-liter, White		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
67	215809700		Bracket-handle Mtg, (2)		Appelez-nous	-
13A	215030011		Door Stop, Almond, Frzr		Appelez-nous	-
17A	215422200		Handle End, Chrome		Appelez-nous	-
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21B	215218700		Screw-door Stop Mtg, Torx Pan Head,10-16 X 3/4		Appelez-nous	-
21C	215416100		Screw-handle/brkt, Flat Head, Cr, 10-32 X 7/16		Appelez-nous	-
21D	215410900		Screw-handle Mtg, Hex Head, 10-32 X 3/8		Appelez-nous	-
NI	5303299395		Bin-utility, Gallon, White		Appelez-nous	-
NI	215518000		Magnet-nameplate (non-illustrated)		Appelez-nous	-
NI	215220304		Label-nameplate, Almond (non-illustrated)		Appelez-nous	-
NI	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
